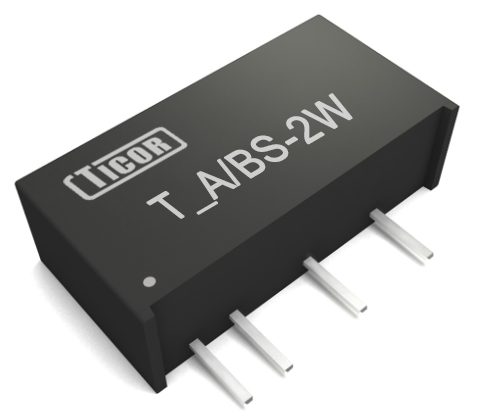

The Jintianke constant voltage series products are specifically designed for applications where a set of power sources isolated from the input power source needs to be generated in distributed power systems on circuit boards. This product has high reliability, wide adaptability, excellent performance, small size, convenient and flexible use, and can meet the requirements of isolated power supply system circuit occasions. Widely used in industrial control, communication systems, instrumentation, power systems, railway systems, medical equipment, distributed power supply and other fields.
| Product series | Input Voltage(V) | Output voltage（V） | Output power（W） | Packaging type | Package Size(mm) |
| T0503BLS-2W | 5 | 3.3 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0505BLS-2W | 5 | 5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0507BLS-2W | 5 | 7.2 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0509BLS-2W | 5 | 9 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0512BLS-2W | 5 | 12 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0515BLS-2W | 5 | 15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0524BLS-2W | 5 | 24 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0503AS-2W | 5 | ±3.3 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0505AS-2W | 5 | ±5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0509AS-2W | 5 | ±9 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0512AS-2W | 5 | ±12 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0515AS-2W | 5 | ±15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T0524AS-2W | 5 | ±24 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1203BLS-2W | 12 | 3.3 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1205BLS-2W | 12 | 5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1209BLS-2W | 12 | 9 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1212BLS-2W | 12 | 12 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1215BLS-2W | 12 | 15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1224BLS-2W | 12 | 24 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1203AS-2W | 12 | ±3.3 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1205AS-2W | 12 | ±5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1209AS-2W | 12 | ±9 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1212AS-2W | 12 | ±12 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1215AS-2W | 12 | ±15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1224AS-2W | 12 | ±24 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1505BLS-2W | 15 | 5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1515BLS-2W | 15 | 15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1524BLS-2W | 15 | 24 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1505AS-2W | 15 | ±5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T1515AS-2W | 15 | ±15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2403BLS-2W | 24 | 3.3 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2405BLS-2W | 24 | 5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2409BLS-2W | 24 | 9 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2412BLS-2W | 24 | 12 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2415BLS-2W | 24 | 15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2424BLS-2W | 24 | 24 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2403AS-2W | 24 | ±3.3 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2405AS-2W | 24 | ±5 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2409AS-2W | 24 | ±9 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2412AS-2W | 24 | ±12 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2415AS-2W | 24 | ±15 | 2 | SIP6 | 19.65*10.16*7.05 |
| T2424AS-2W | 24 | ±24 | 2 | SIP6 | 19.65*10.16*7.05 |
