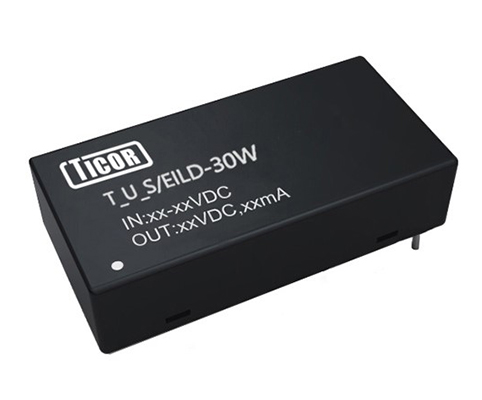

The 30W dip1*2 wide voltage series products are designed by jintike for applications where a group of power sources isolated from the input power supply need to be generated in the distributed power system on the circuit board. The product packaging adopts the internationally used dip2*1 (50.8*25.4) packaging form, which can replace similar products at home and abroad with pin to pin. This series has perfect protection functions, such as input undervoltage, output short circuit, overcurrent, overvoltage, etc., and can meet the power supply needs of various occasions. This series of products are widely used in industrial control, communication system, instruments and meters, power system, railway system, medical equipment, distributed power supply and other fields.
| Product line | Input Voltage(V) | Output voltage（V） | Output power(W) | Package type | Package Size(mm) |
| T24U03SILD-30W | 24(9-36) | 3.3 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T24U05SILD-30W | 24(9-36) | 5 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T24U09SILD-30W | 24(9-36) | 9 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T24U12SILD-30W | 24(9-36) | 12 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T24U15SILD-30W | 24(9-36) | 15 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T24U24SILD-30W | 24(9-36) | 24 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T48U05EILD-30W | 48(18-75) | ±5 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T48U12EILD-30W | 48(18-75) | ±12 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
| T48U15EILD-30W | 48(18-75) | ±15 | 30W | DIP 1*2 | 50.80*25.40*11.0 |
