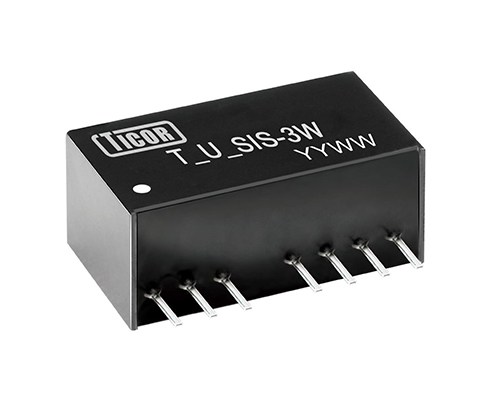

The SIP wide voltage series products are designed by Jintianke for applications in distributed power systems on circuit boards that require the generation of a set of power sources isolated from the input power source. The product packaging adopts the internationally recognized DIP8 packaging form, which can replace similar products at home and abroad with PIN to PIN. This series has complete protection functions, such as input undervoltage, output short circuit, overcurrent, overvoltage, etc., which can meet the power supply needs of various occasions. This series of products is widely used in industrial control, communication systems, instrumentation, power systems, railway systems, medical equipment, distributed power supply and other fields.
| Product series | Input Voltage(V) | Output voltage（V） | Output power(W) | Packaging type | Package Size(mm) |
| T05W03SIS-3W | 5（4.5-9) | 3.3 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W05SIS-3W | 5（4.5-9) | 5 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W09SIS-3W | 5（4.5-9) | 9 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W12SIS-3W | 5（4.5-9) | 12 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W15SIS-3W | 5（4.5-9) | 15 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W24SIS-3W | 5（4.5-9) | 24 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W05EIS-3W | 5（4.5-9) | ±5 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W12EIS-3W | 5（4.5-9) | ±12 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W15EIS-3W | 5（4.5-9) | ±15 | 3 | SIP8 | 22.00*9.50*12.00 |
| T05W24EIS-3W | 5（4.5-9) | ±24 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W03SIS-3W | 12（9-18) | 3.3 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W05SIS-3W | 12（9-18) | 5 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W09SIS-3W | 12（9-18) | 9 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W12SIS-3W | 12（9-18) | 12 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W15SIS-3W | 12（9-18) | 15 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W24SIS-3W | 12（9-18) | 24 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W05EIS-3W | 12（9-18) | ±5 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W12EIS-3W | 12（9-18) | ±12 | 3 | SIP8 | 22.00*9.50*12.00 |
| T12W15EIS-3W | 12（9-18) | ±15 | 3 | SIP8 | 22.00*9.50*12.00 |
| T24U03SIS-3W | 24（9-36) | 3.3 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U05SIS-3W | 24（9-36) | 5 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U09SIS-3W | 24（9-36) | 9 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U12SIS-3W | 24（9-36) | 12 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U15SIS-3W | 24（9-36) | 15 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U24SIS-3W | 24（9-36) | 24 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U05EIS-3W | 24（9-36) | ±5 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U09EIS-3W | 24（9-36) | ±9 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U12EIS-3W | 24（9-36) | ±12 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U15EIS-3W | 24（9-36) | ±15 | 6 | SIP8 | 22.00*9.50*12.00 |
| T24U24EIS-3W | 24（9-36) | ±24 | 6 | SIP8 | 22.00*9.50*12.00 |
| T48U03SIS-3W | 48（18-75) | 3.3 | 6 | SIP8 | 22.00*9.50*12.00 |
| T48U05SIS-3W | 48（18-75) | 5 | 6 | SIP8 | 22.00*9.50*12.00 |
| T48U09SIS-3W | 48（18-75) | 9 | 6 | SIP8 | 22.00*9.50*12.00 |
| T48U12SIS-3W | 48（18-75) | 12 | 6 | SIP8 | 22.00*9.50*12.00 |
| T48U15SIS-3W | 48（18-75) | 15 | 6 | SIP8 | 22.00*9.50*12.00 |
| T48U24SIS-3W | 48（18-75) | 24 | 6 | SIP8 | 22.00*9.50*12.00 |
