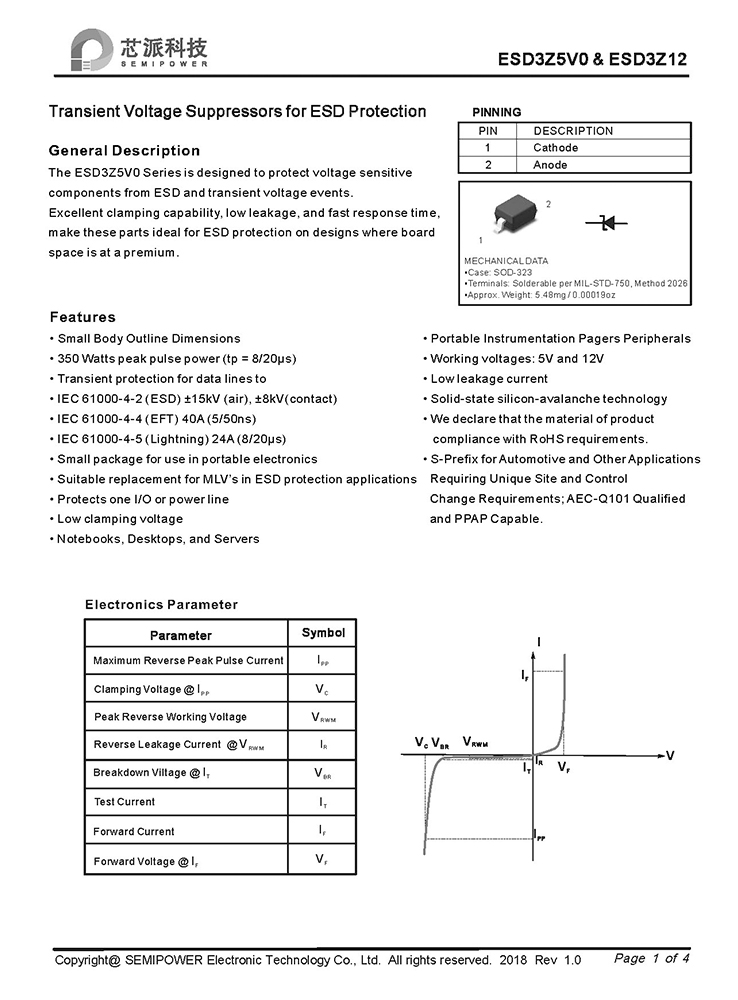

The ESD3Z5V0 Seriesis designed to protect voltage sensitive components from ESD and transient voltage events.
Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.
Small Body Outline Dimensions
350 Watts peak pulse power (tp=8/20μs)
Transient protection for data lines to
IEC61000-4-2(ESD)+15kV(air), ±8kV(contact)
IEC 61000-4-4(EFT)40A(5/50ns)
IEC 61000-4-5(Lightning)24A(8/20μs)
Small package for use in portable electronics
Suitable replacement for MLV's in ESD protection applications
Protects one l/O or power line
Low clamping voltage
Notebooks, Desktops, and Servers
Portable instrumentation Pagers Peripherals
Working voltages: 5V and 12V
Low leakage current
Solid-state silicon-avalanche technology
We declare that the material of product compliance with RoHS requirements
S-Prefix for Automotive and Other Applications
Requiring Unique Site and Control
Change Requirements; AEC-Q101 Qualified and PPAP Capable
