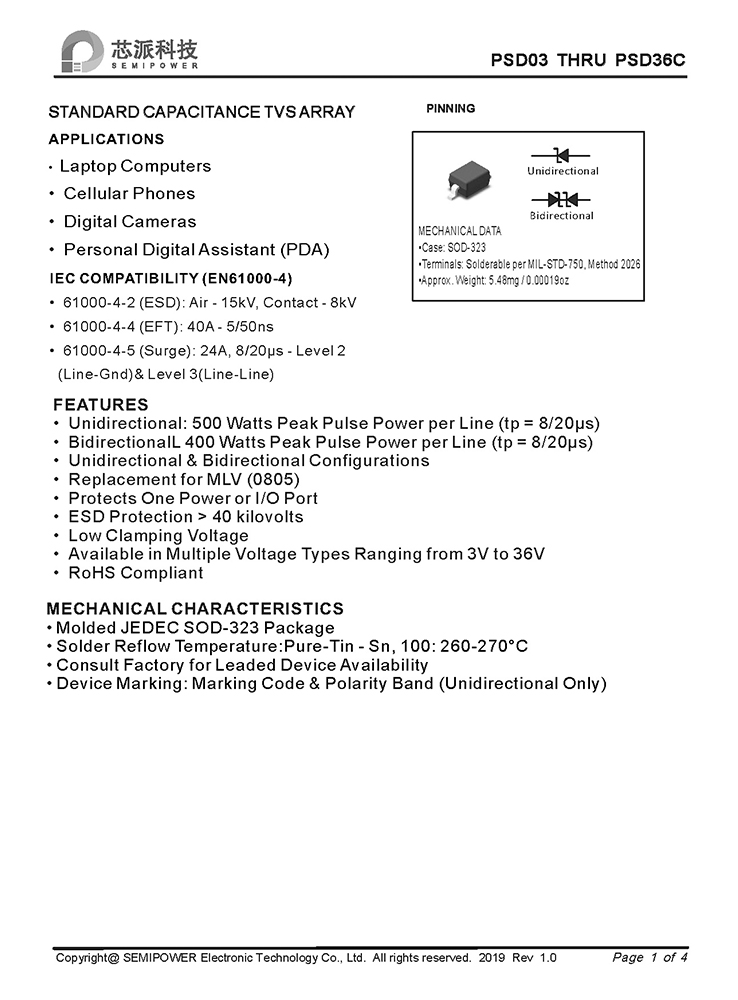

APPLICATIONS
Laptop Computers
Cellular Phones
Digital Cameras
Personal DigitalAssistant (PDA)
IEC COMPATIBILITY(EN61000-4)
61000-4-2(ESD): Air-15kV, Contact-8kV
61000-4-4(EFT): 40A-5/50ns
61000-4-5(Surge): 24A, 8/20μs-Level2
(Line-Gnd)& Level 3(Line-Line)
FEATURES
Unidirectional:500 Watts Peak Pulse Power per Line (tp = 8/20μs)
BidirectionalL400 Watts Peak Pulse Power per Line (tp= 8/20μs)
Unidirectional& BidirectionalConfigurations
ReplacementforMLV(0805)
Protects One Poweror l/O Port
ESD Protection>40 kilovolts
Low Clamping Voltage
Available in Multiple Voltage Types Ranging from 3V to 36V
RoHS Compliant
MECHANICAL CHARACTERISTICS
Molded JEDEC SOD-323 Package
Solder Reflow Temperature: Pure-Tin-Sn, 100: 260-270°C
Consult Factory for leaded Device Availability
Device Marking: Marking Code & Polarity Band (Unidirectional Only)
