S2AF~S2MF

S2AF~S2MF Rectifier Diode

FEATURES

For surface mounted applications

Low profile package

Glass Passivated Chip Junction

Easy to pick and place

Lead free in comply with EU RoHS 2011/65/EU directives


MECHANICAL DATA

Case: SMAF

Terminals: Solderable per MlL-STD-750, Method 2026

Approx. Weight: 27mg/0.00095oz

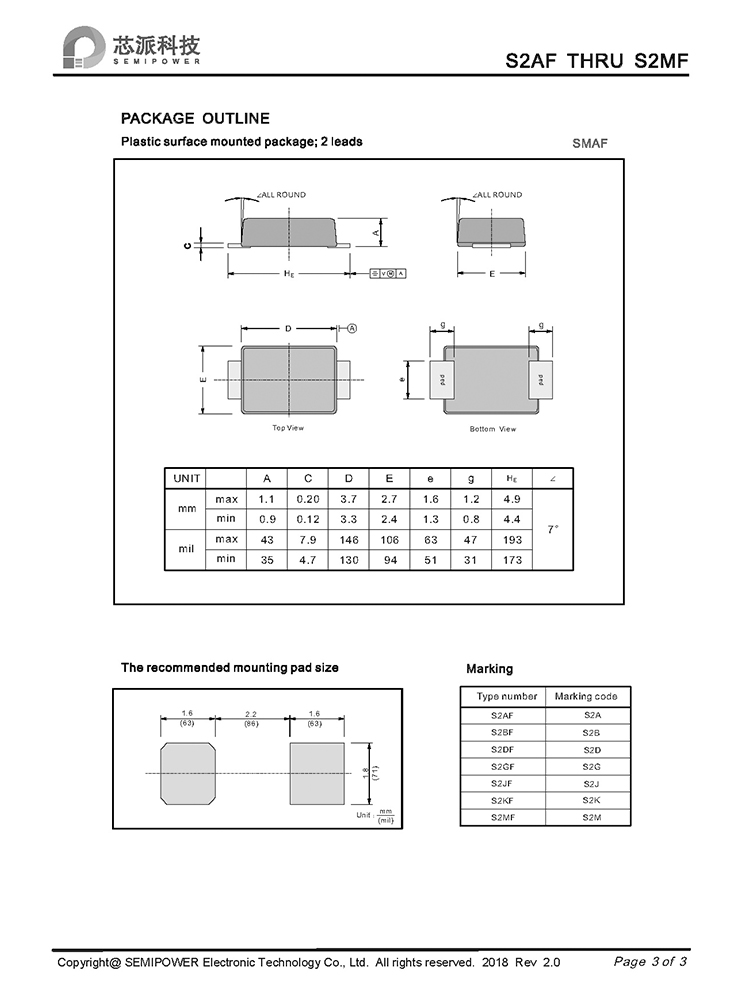

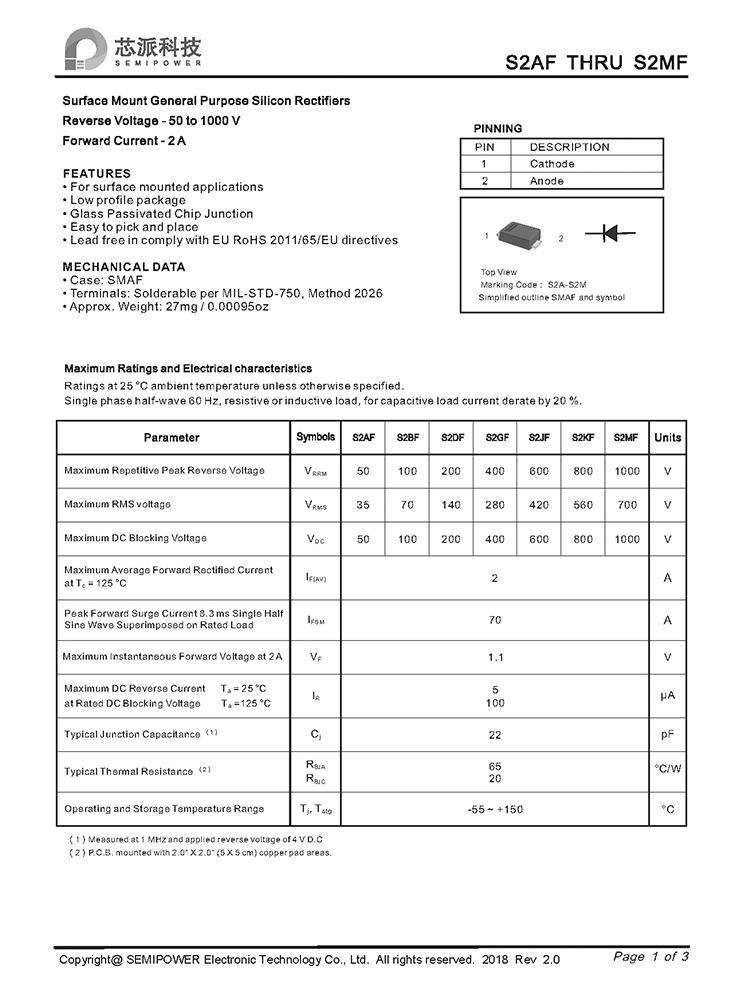

Samwin S2AF THRU S2MF

Samwin S2AF THRU S2MF

Samwin S2AF THRU S2MF
