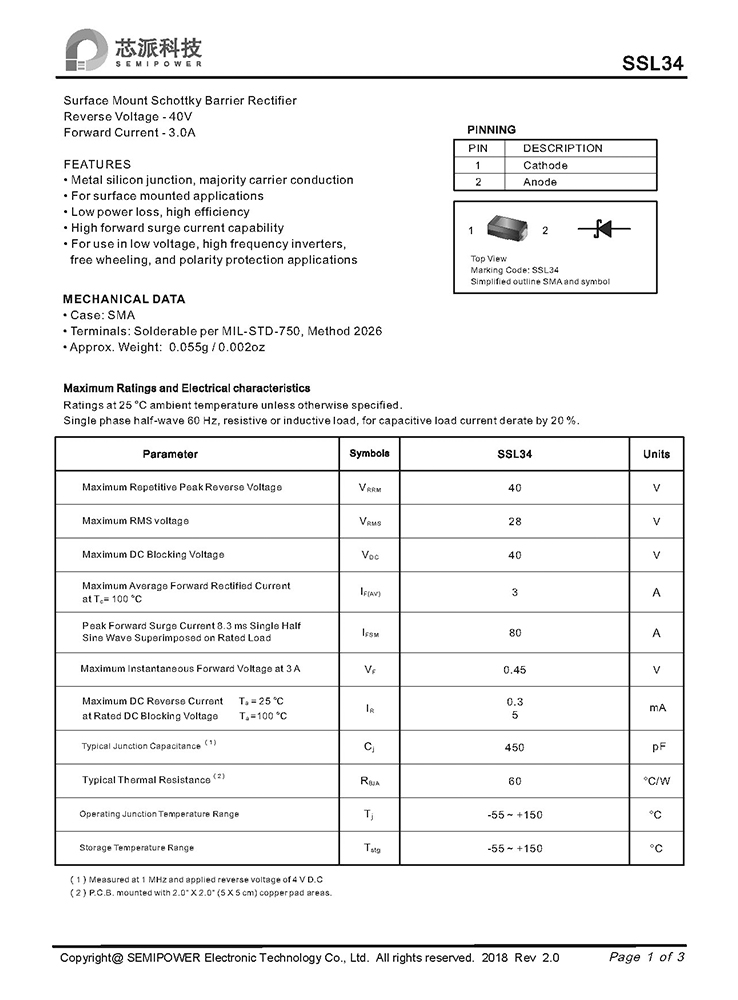

Surface Mount Schottky Barrier Rectifier
Reverse Voltage -40V
Forward Current -3.0A
Metal silicon junction, majority carrier conduction
Forsurface mounted applications
Low power loss, high efficiency
High forward surge current capability
Forusein low voltage, high frequency inverters, free wheeling, and polarity protection applications

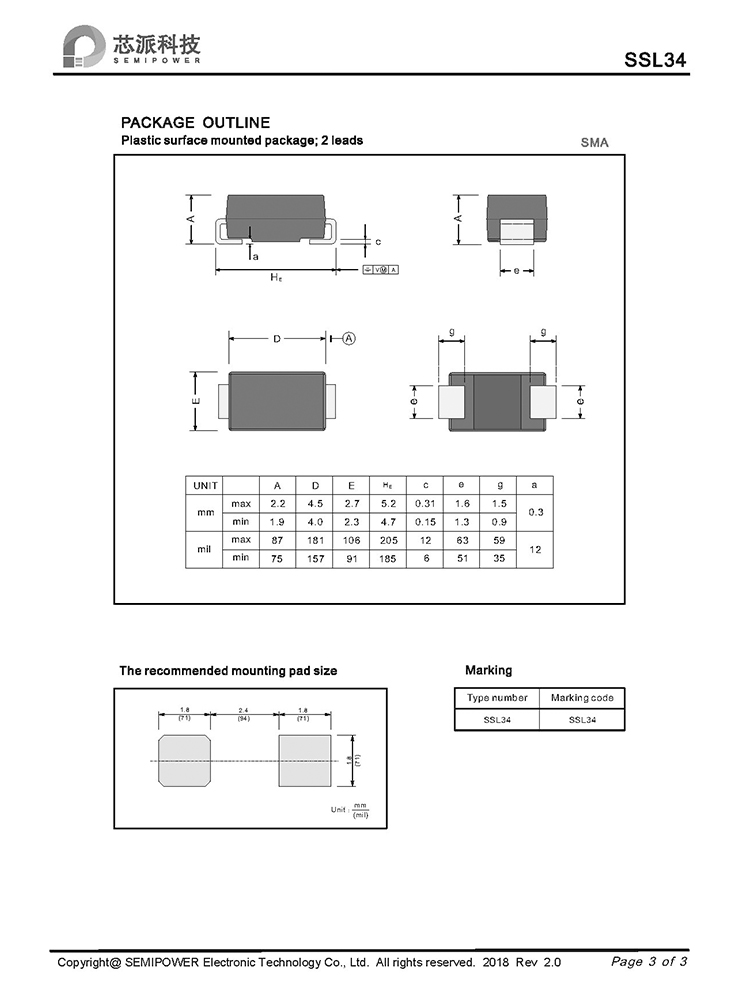

Case: SMA
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight: 0.055g /0.002oz
