SW120R06VLS

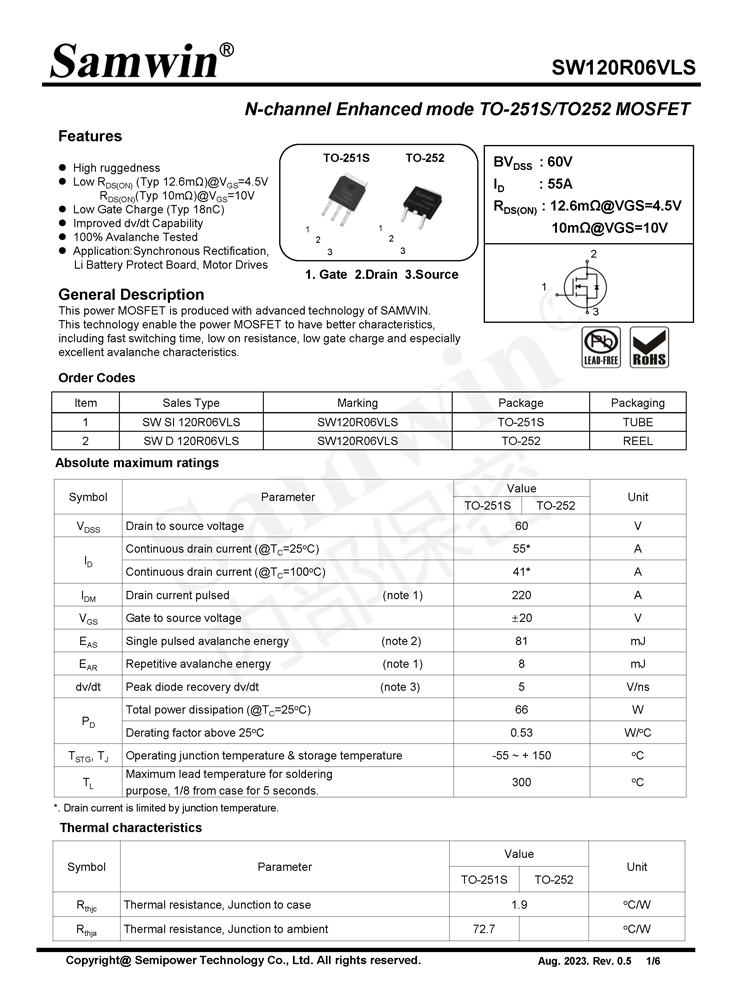

SW120R06VLS N-Channel Trench Mosfet

Features

  • High ruggedness

  • Low RDS(ON) (Typ 12.6mΩ)@VGS=4.5V

            RDS(ON) (Typ 10mΩ)@VGS=10V

  • Low Gate Charge (Typ 18nC)

  • improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: Synchronous Rectification, Li Battery Protect Board, Motor Drives


General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

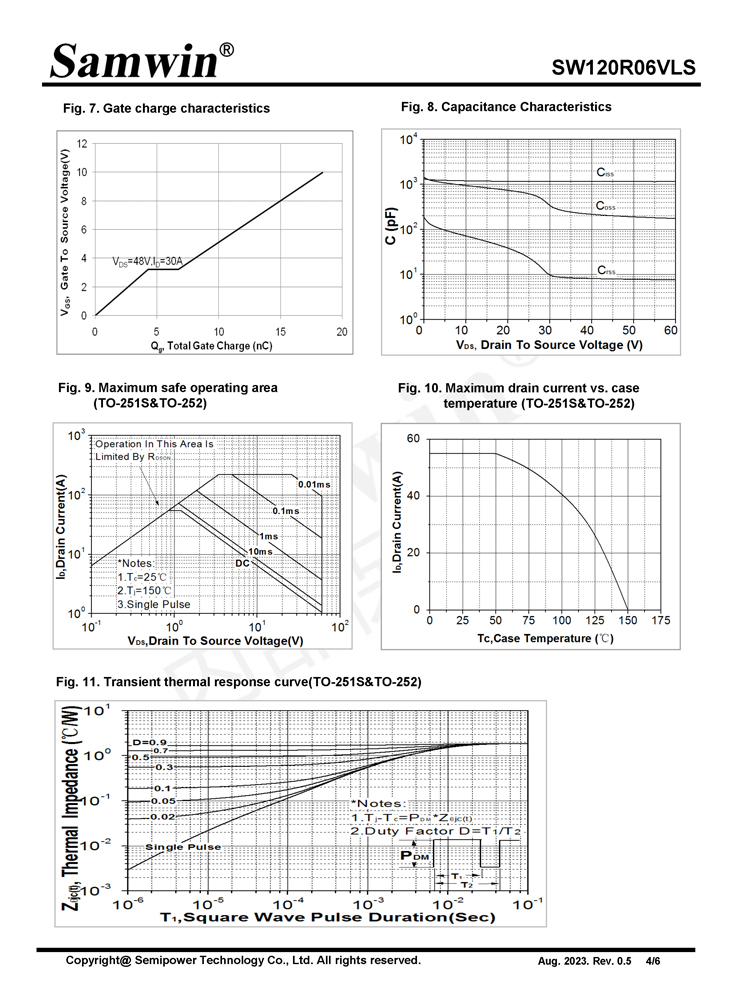

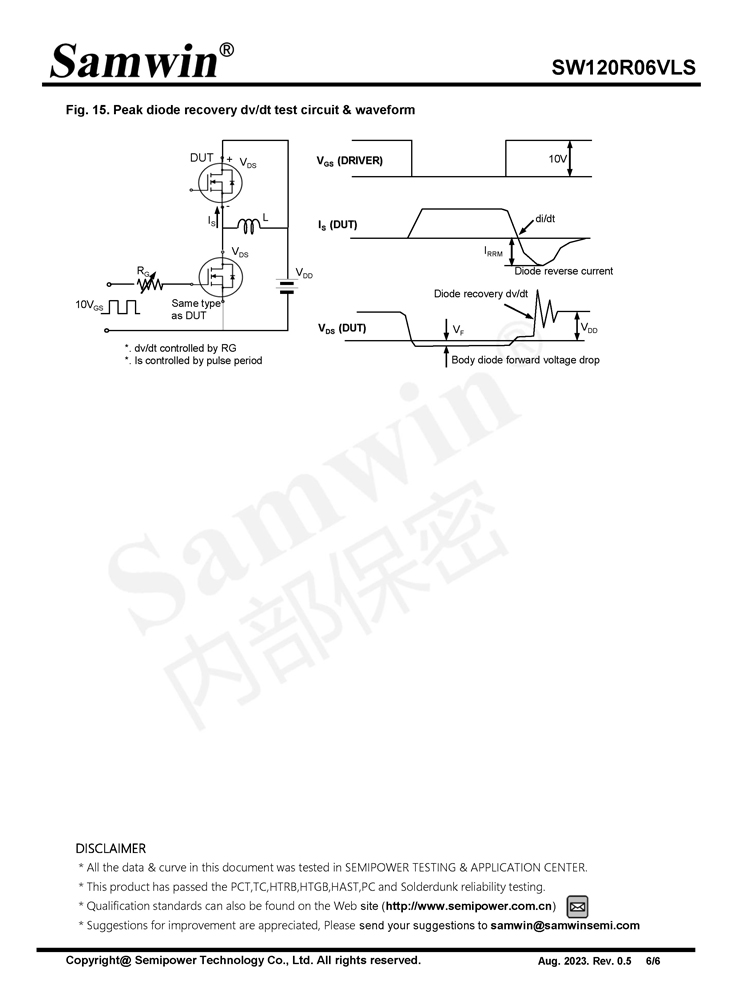

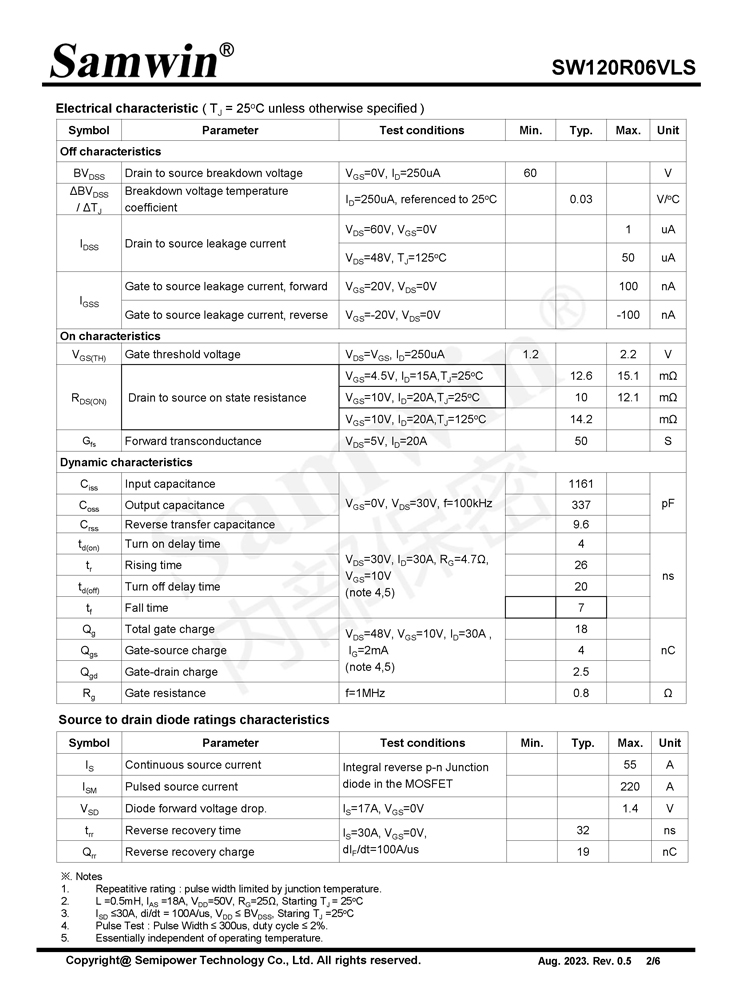

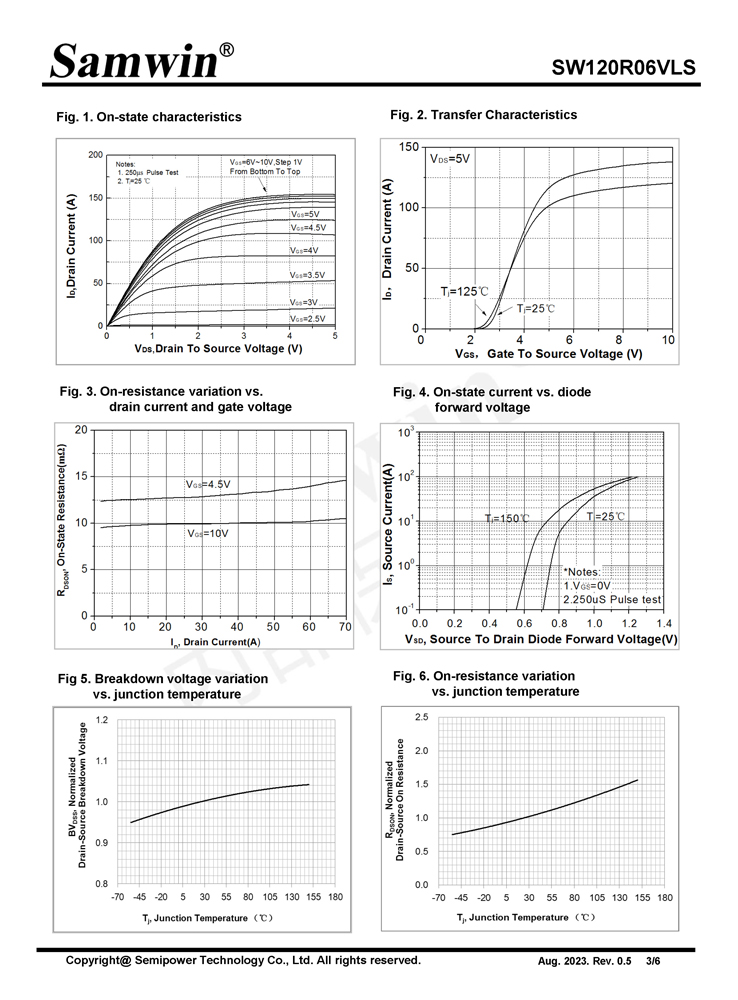

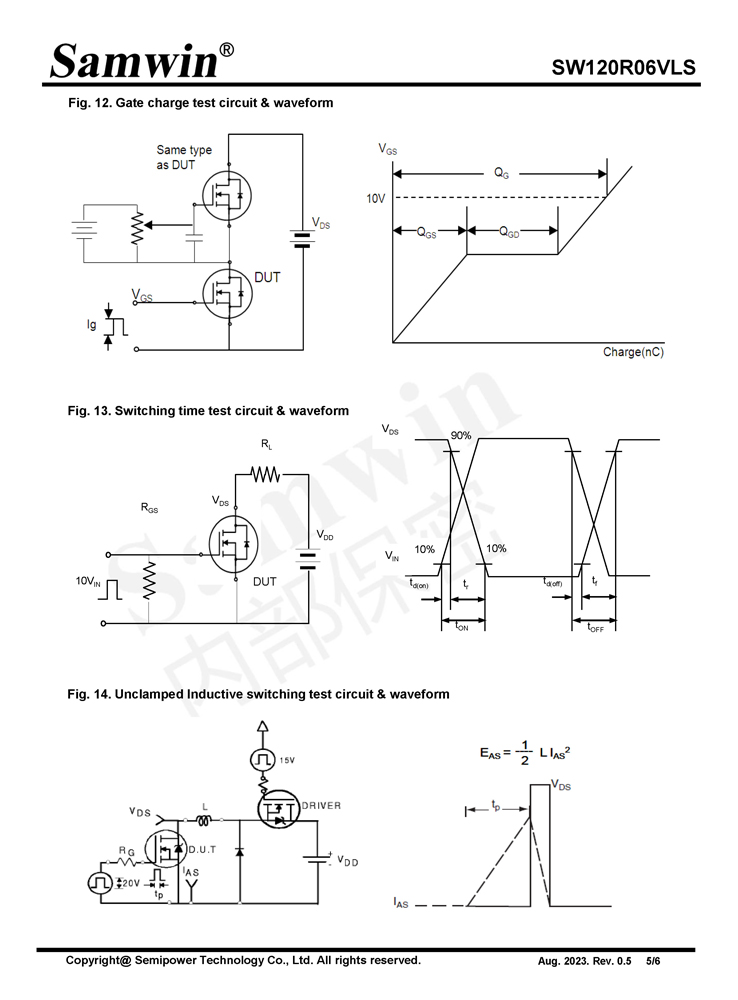

Samwin SW120R06VLS N-channel Enhanced mode TO-251S/TO252 MOSFET

Samwin SW120R06VLS N-channel Enhanced mode TO-251S/TO252 MOSFET

Samwin SW120R06VLS N-channel Enhanced mode TO-251S/TO252 MOSFET

Samwin SW120R06VLS N-channel Enhanced mode TO-251S/TO252 MOSFET

Samwin SW120R06VLS N-channel Enhanced mode TO-251S/TO252 MOSFET

Samwin SW120R06VLS N-channel Enhanced mode TO-251S/TO252 MOSFET
