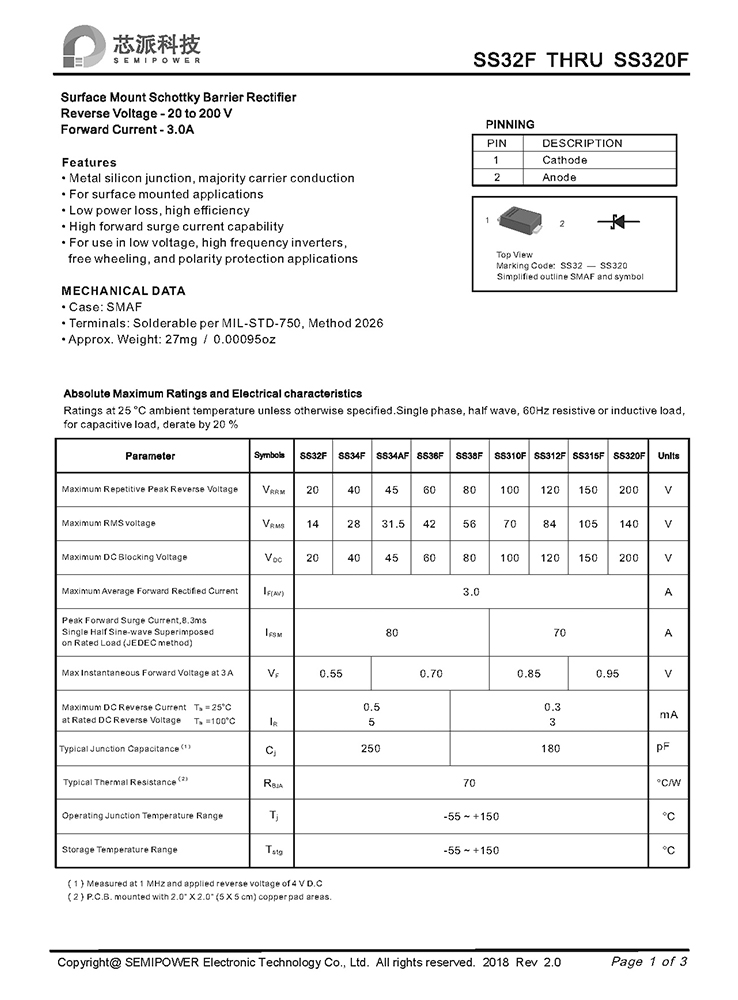

Reverse Voltage - 20 to 200 V
Forward Current - 3.0A
Metal silicon junction, majority carrier conduction
For surface mounted applications
Low power loss, high efficiency
High forward surge current capability
For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

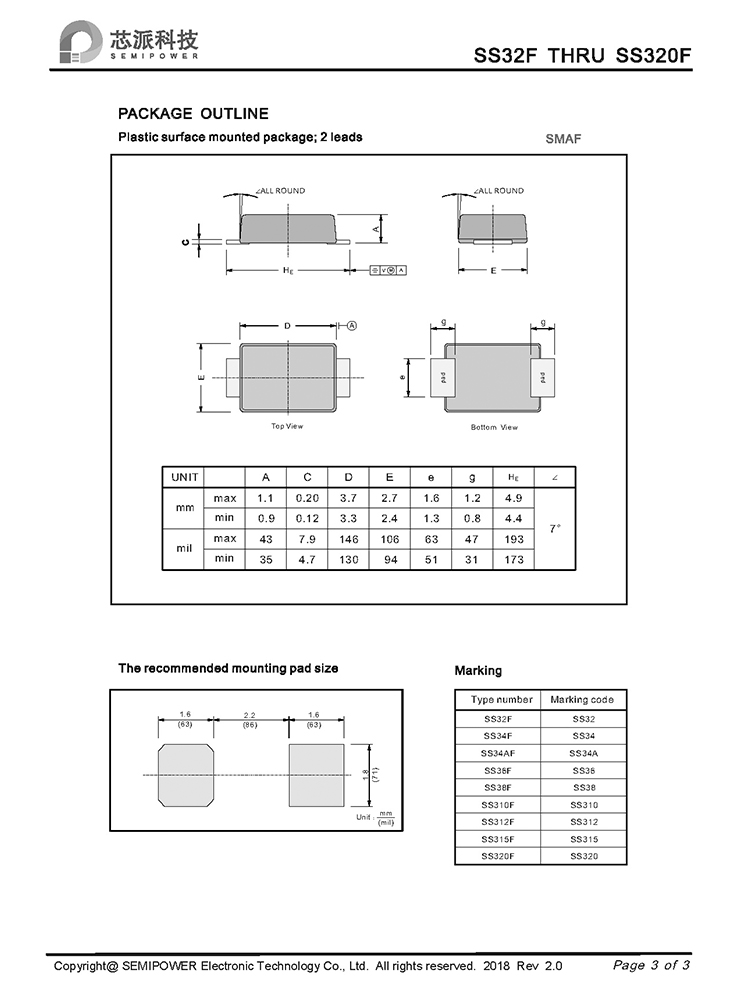

Case: SMAF
Terminals: Solderable per MIL-STD-750, Method 2026
Approx.Weight: 27mg/0.00095oz
