Aug 10 , 2024

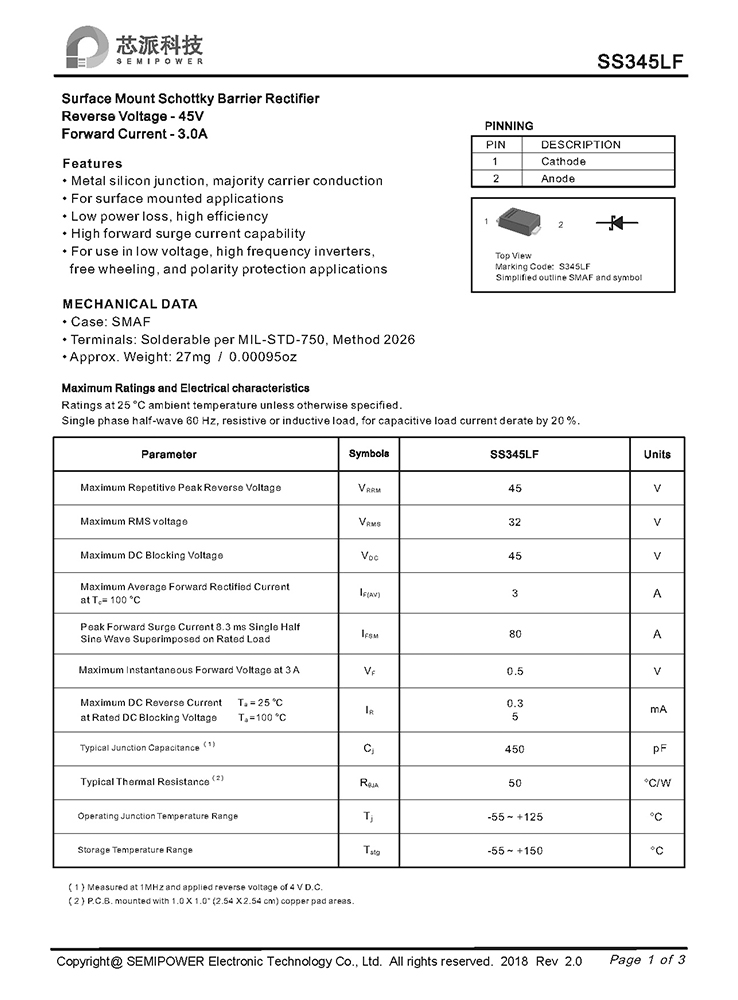

Reverse Voltage-45V
Forward Current-3.0A
*Metal silicon junction, majority carrier conduction
*For surface mounted applications
*Low power loss, high efficiency
*High forward surge current capability
*For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

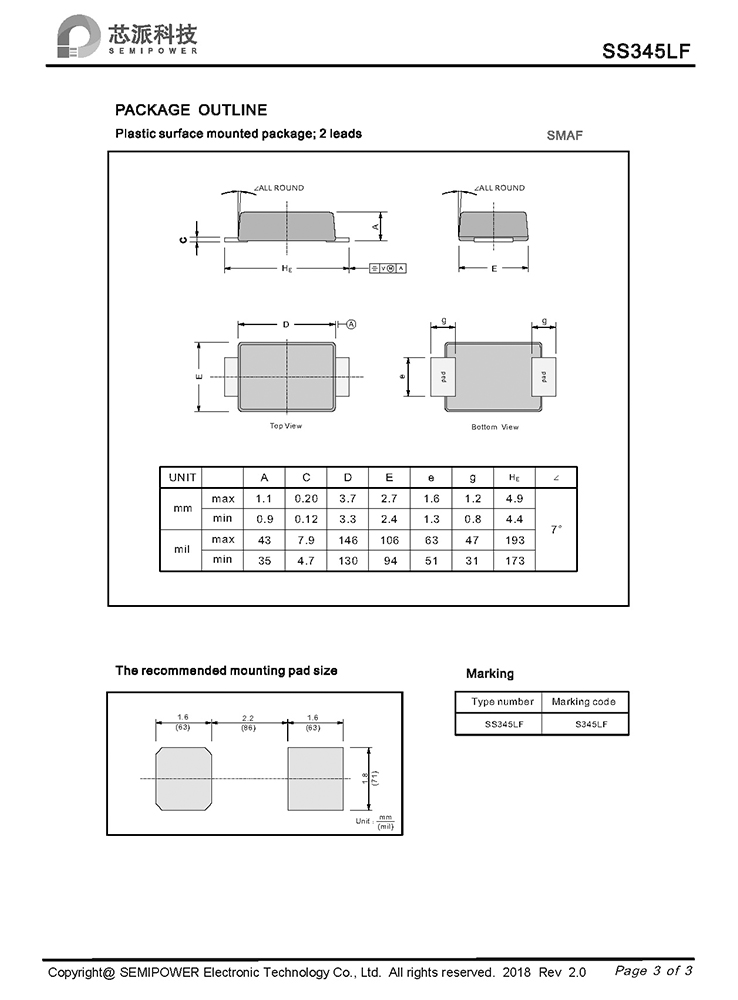

*Case: SMAF
*Terminals: Solderable per MIL-STD-750, Method 2026
*Approx.Weight: 27mg / 0.00095oz
