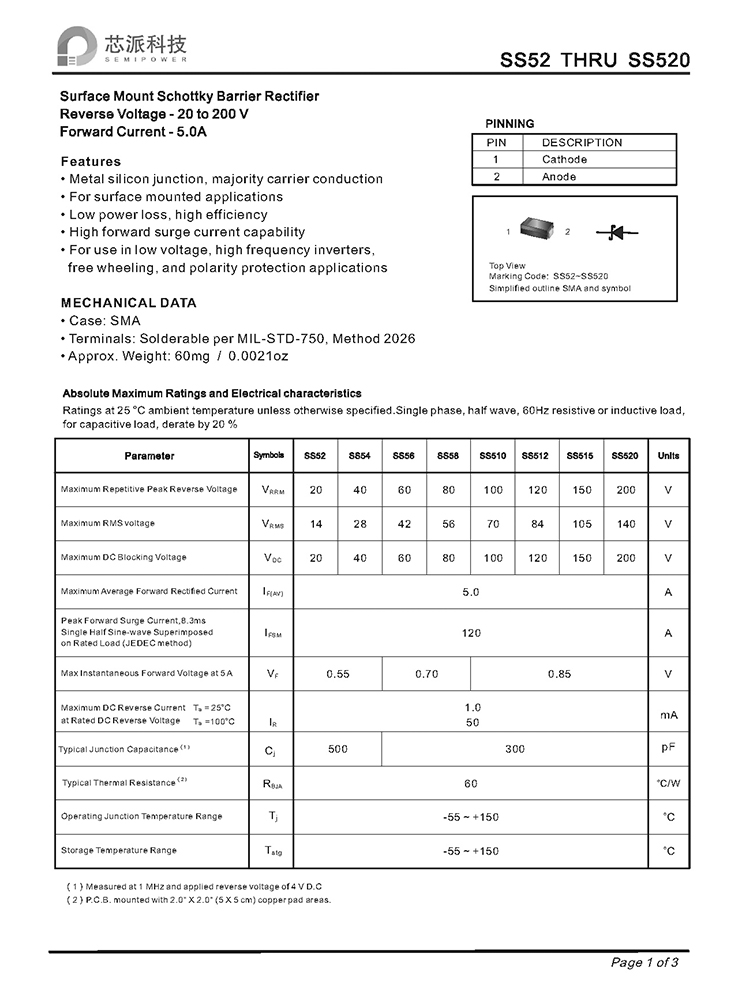

Reverse Voltage - 20 to 200 V
Forward Current - 5.0A
*Metal silicon junction, majority carrier conduction
*For surface mounted applications
*Low power loss, high efficiency
*High forward surge current capability
*For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

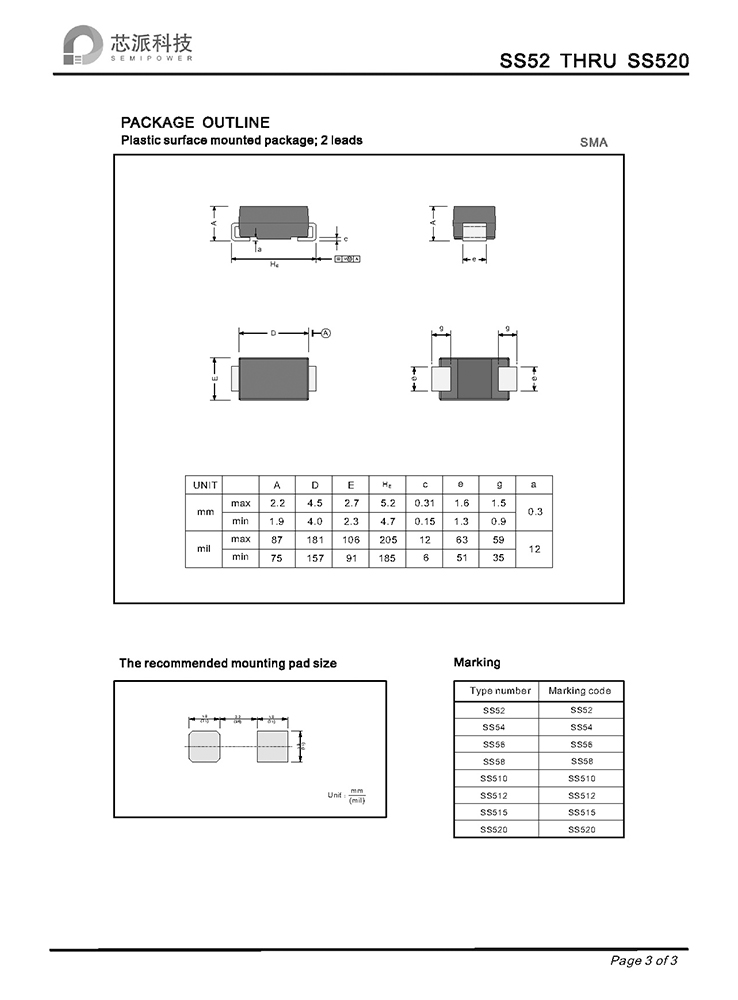

*Case: SMA
*Terminals: Solderable per MIL-STD-750, Method 2026
*Approx.Weight: 60mg /0.0021oz
