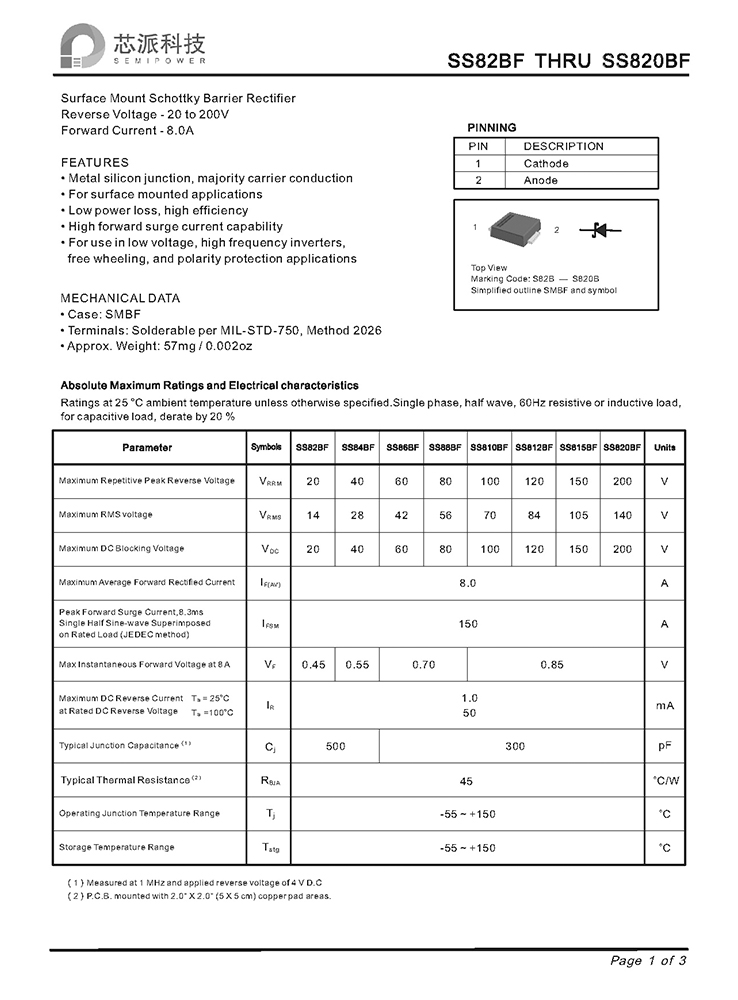

Reverse Voltage - 20 to 200V
Forward Current - 8.0A
Metal silicon junction, majority carrier conduction
For surface mounted applications
Low power loss, high efficiency
High forward surge current capability
Foruse in low voltage,high frequency inverters, free wheeling, and polarity protection applications
Case: SMBF
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight: 57mg/0.002oz
