SS345BF~3A45V

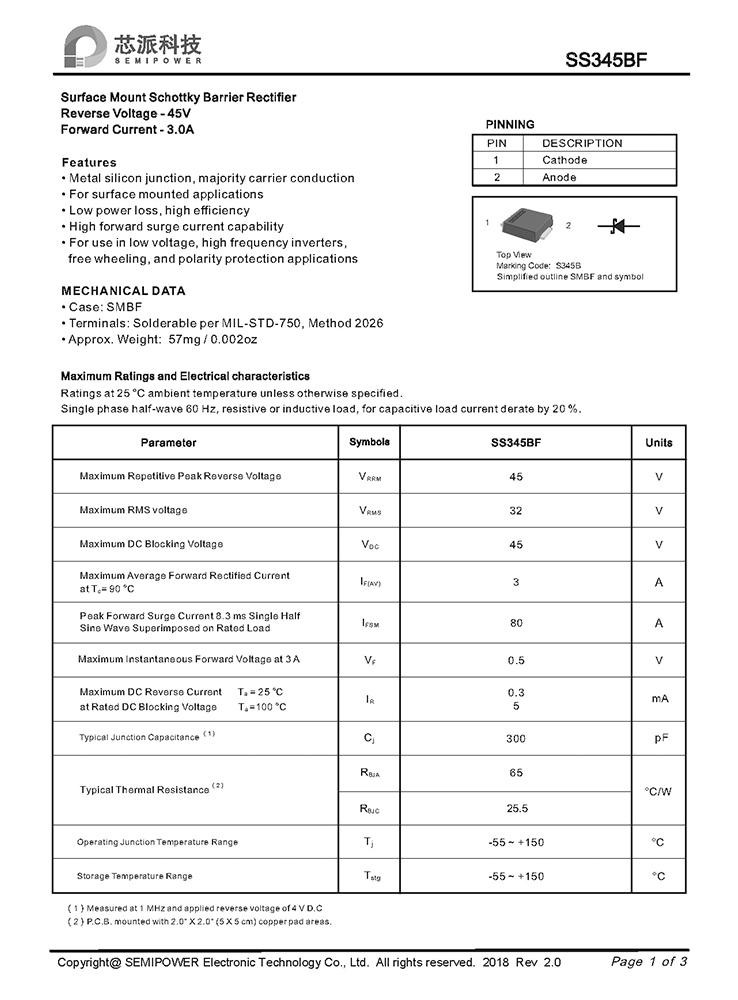

SS345BF~3A45V Schottky Diode

Surface Mount Schottky Barrier Rectifier

Reverse Voltage - 45V

Forward Current - 3.0A


Features

Metal silicon junction, majority carrier conduction

For surface mounted applications

Low power loss, high efficiency

High forward surge current capability

For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications


MECHANICAL DATA

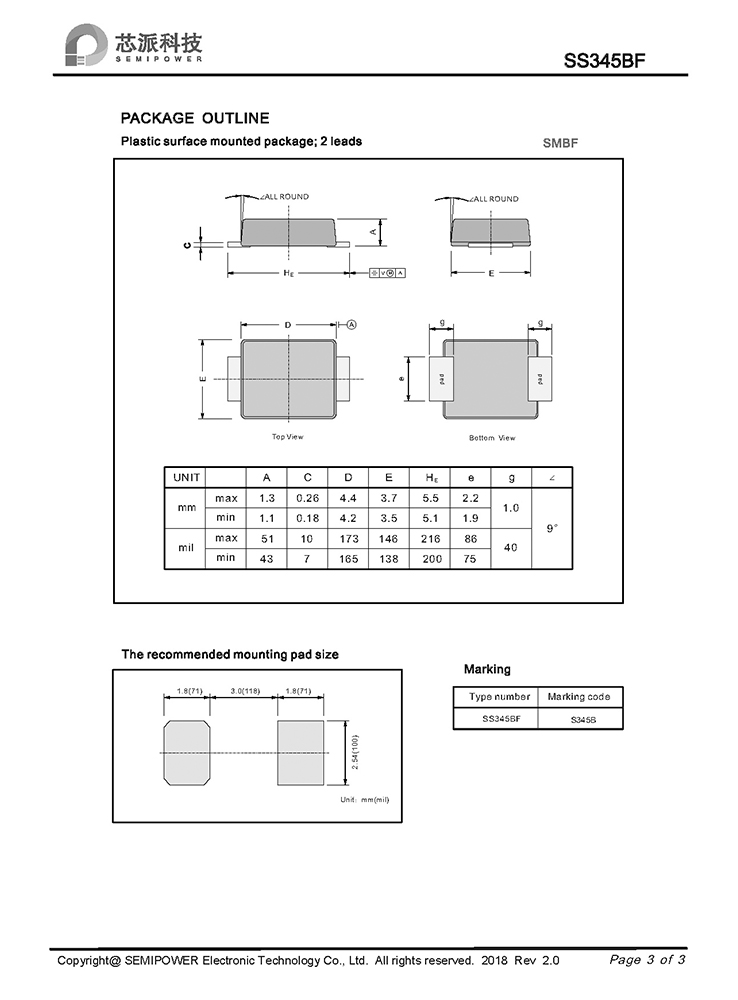

Case: SMBF

Terminals: Solderable per MIL-STD-750, Method 2026

Approx.Weight: 57mg/0.002oz


Samwin SS345BF

Samwin SS345BF

Samwin SS345BF
