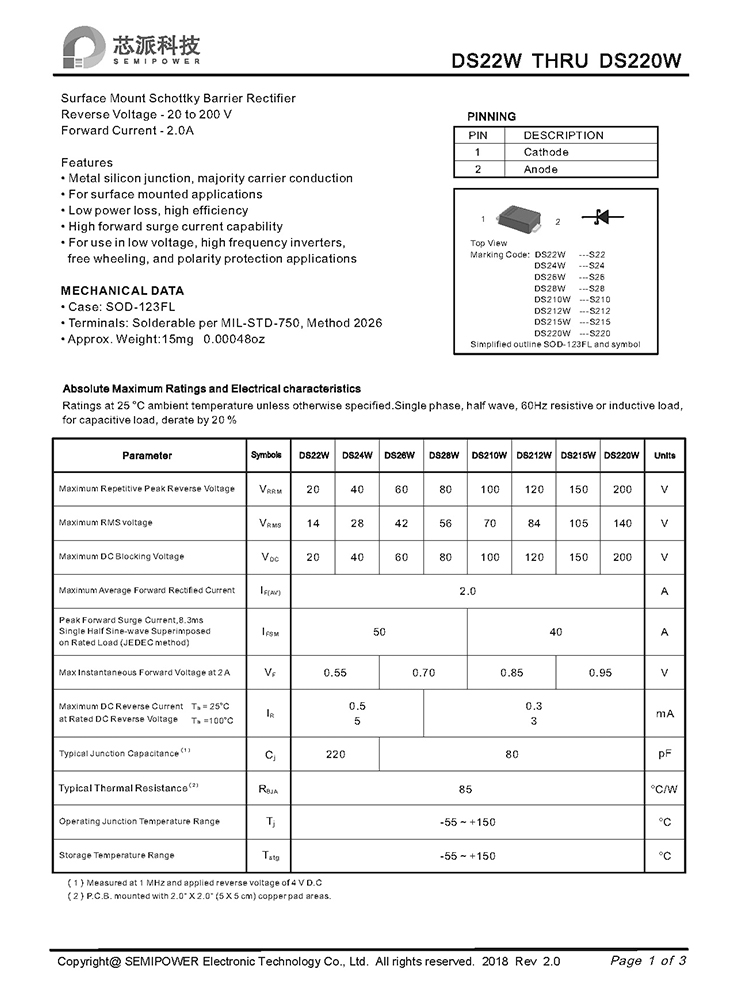

Surface Mount Schottky Barrier Rectifier
Reverse Voltage - 20 to 200 V
Forward Current -2.0A
*Metal silicon junction, majority carrier conduction
*For surface mounted applications
*Low power loss, high efficiency
*High forward surge current capability
*For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

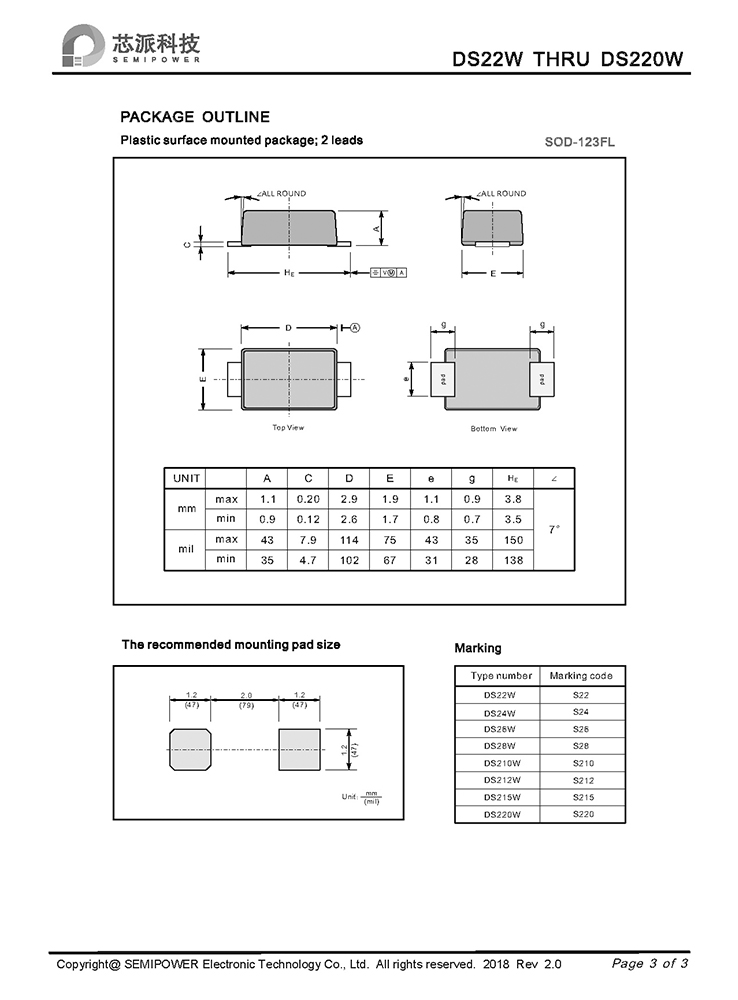

Case: SOD-123FL
Terminals: Solderable per MIL-STD-750, Method 2026
Approx.Weight: 15mg 0.00048oz
