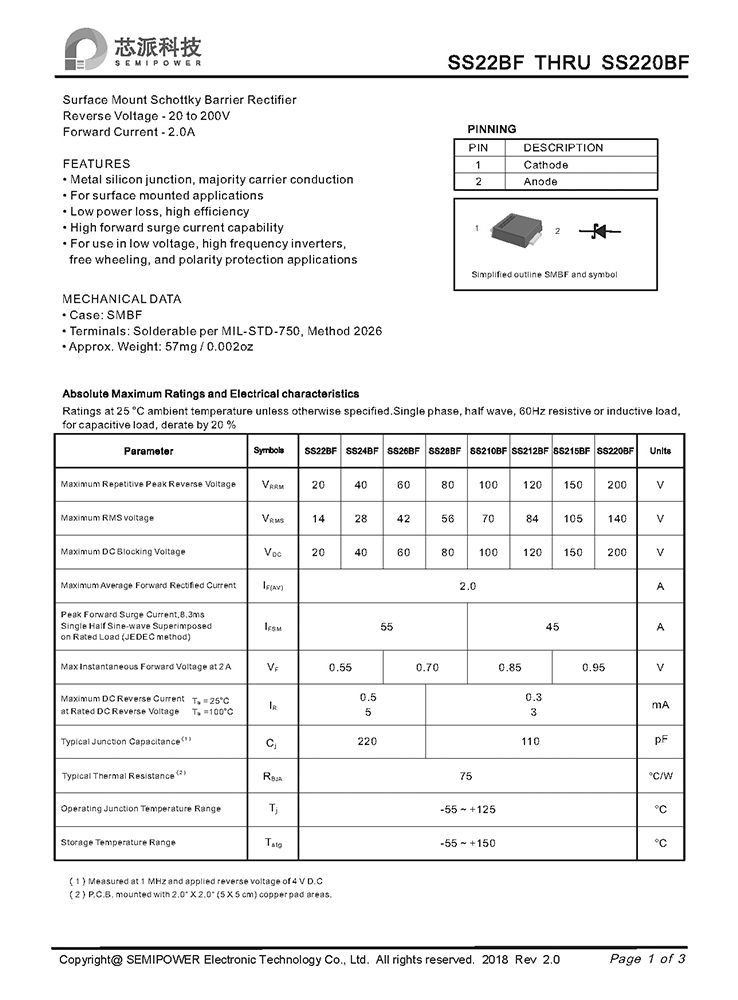

Surface Mount Schottky Barrier Rectifier
Reverse Voltage -20 to 200V
Forward Current -2.0A
*Metal silicon junction, majority carrier conduction
*For surface mounted applications
*Low power loss, high efficiency
*High forward surge current capability
*For use in low voltage, high frequency inverters, free wheeling, and polarily protection applications

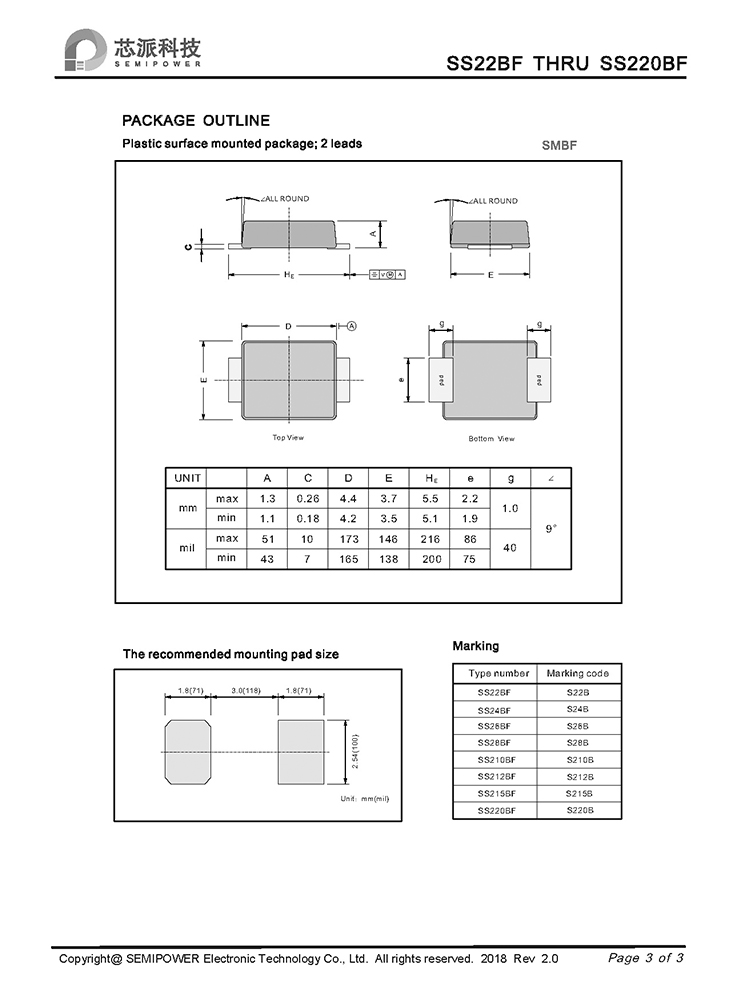

Case: SMBF
Terminals: Solderable per MIL-STD-750, Method 2026
Approx.Weight: 57mg/0.002oz
