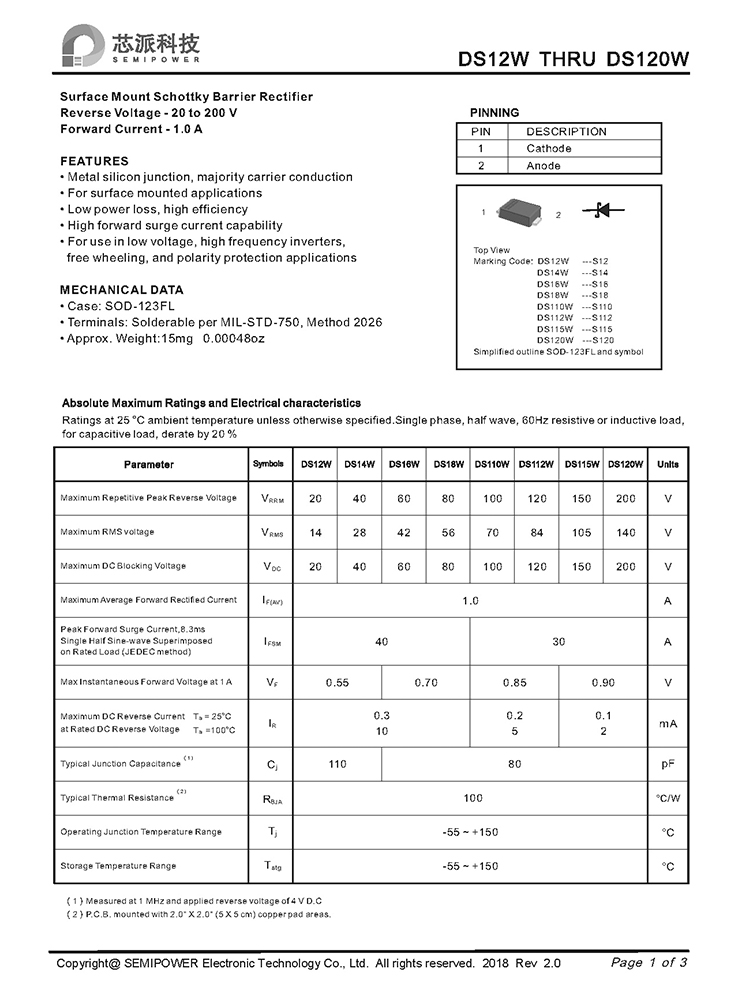

Surface Mount Schottky Barrier Rectifier
Reverse Voltage -20 to 200 V
Forward Current -1.0 A
*Metal silicon junction, majority carrier conduction
*For surface mounted applications
*Low power loss, high efficiency
*High forward surge current capability
*For use in low voltage, high-frequency inverters, free wheeling, and polarity protection applications

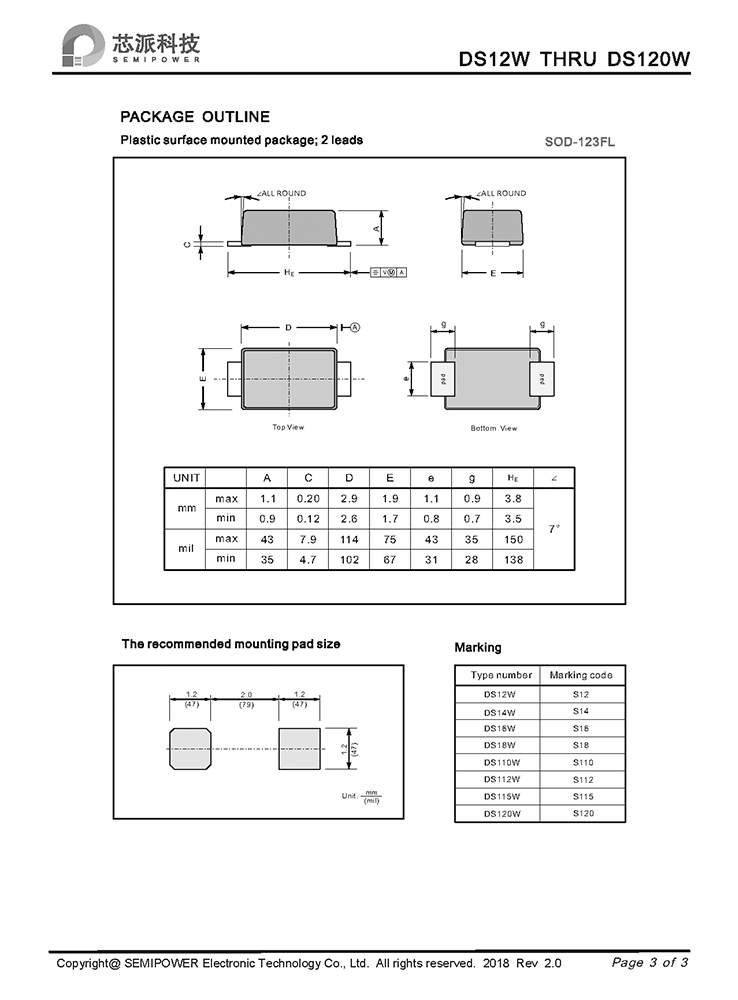

*Case: SOD-123FL
*Terminals: Solderable per MIL-STD-750, Method 2026
*Approx. Weight: 15mg 0.00048oz
