SW010R85E8S

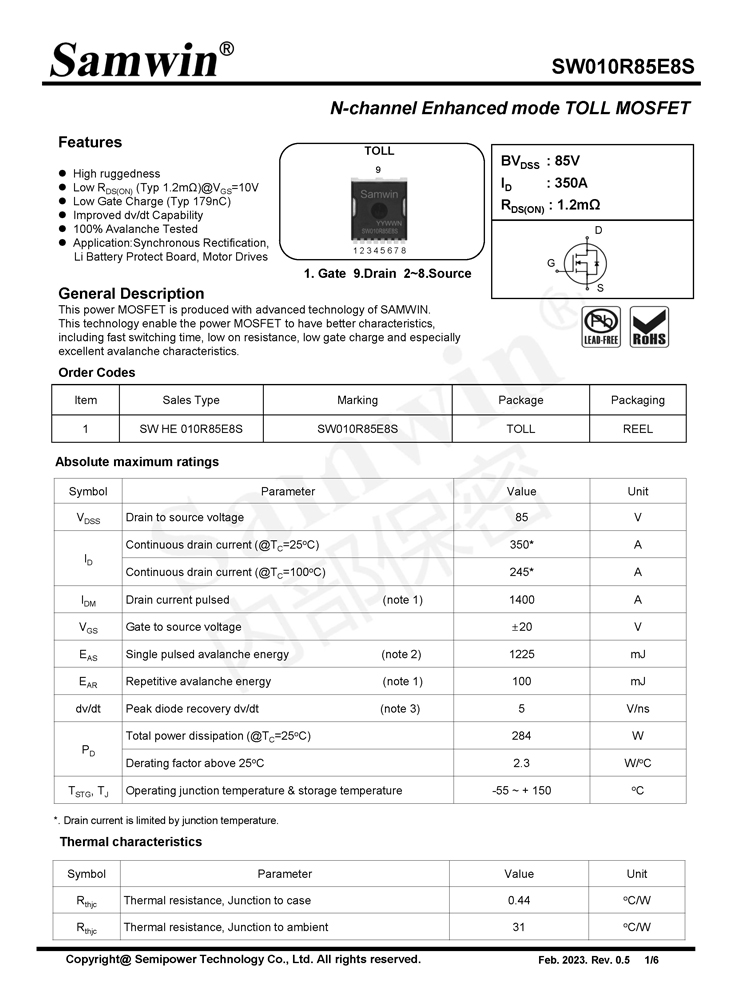

SW010R85E8S N-Channel SGT MOSFET

Features

  • High ruggedness

  • Low RoscN (Typ 1.2mΩ)@Ves=10V

  • Low Gate Charge (Typ 179nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: Synchronous Rectifcation, Li Battery Protect Board, Motor Drives


General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

Samwin SW010R85E8S N-channel Enhanced mode TOLL MOSFET

Samwin SW010R85E8S N-channel Enhanced mode TOLL MOSFET

Samwin SW010R85E8S N-channel Enhanced mode TOLL MOSFET

Samwin SW010R85E8S N-channel Enhanced mode TOLL MOSFET

Samwin SW010R85E8S N-channel Enhanced mode TOLL MOSFET

Samwin SW010R85E8S N-channel Enhanced mode TOLL MOSFET
