SW030R06VLS

Name: SW030R06VLS
Brand: SEMIPOWER TECHNOLOGY CO., LTD.

SW030R06VLS N-Channel SGT MOSFET

General Description：

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

Features：

High ruggedness
Low R»soN (Typ 25mΩ)@Ves=4.5V
(Typ 19.8mQ)@Vs=10V
Low Gate Charge (Typ 10nC)
lmproved dv/dt Capability
100% Avalanche Tested
Application:Synchronous Rectification, Li Battery Protect Board, Inverter

Get A Quote

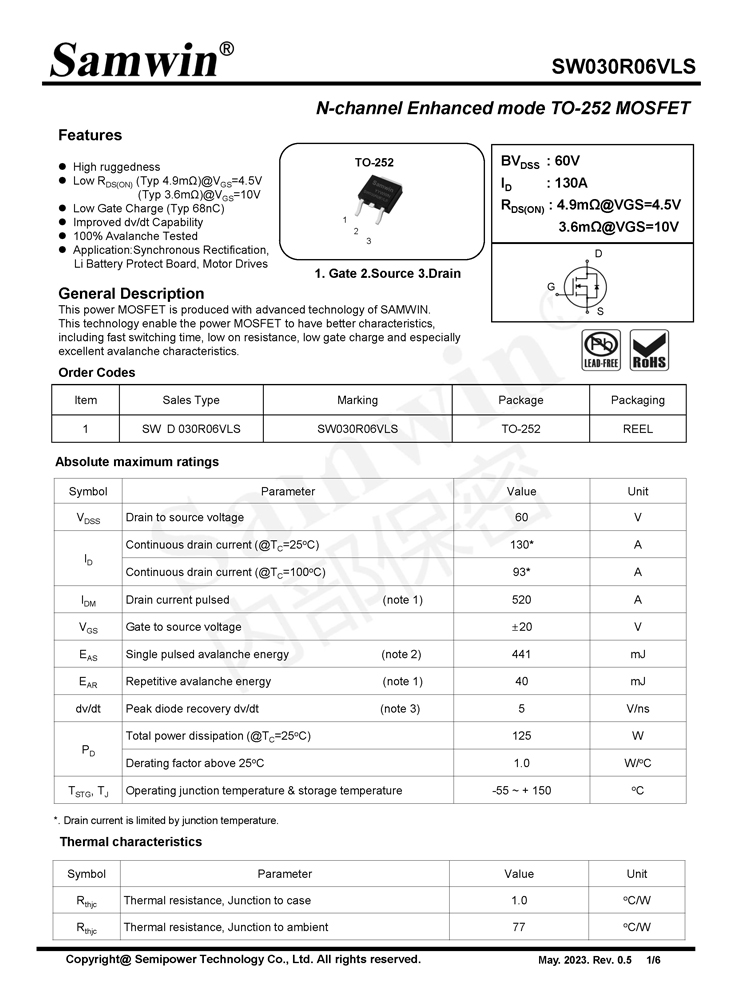

Samwin SW030R06VLS N-channel Enhanced mode TO-252 MOSFET
