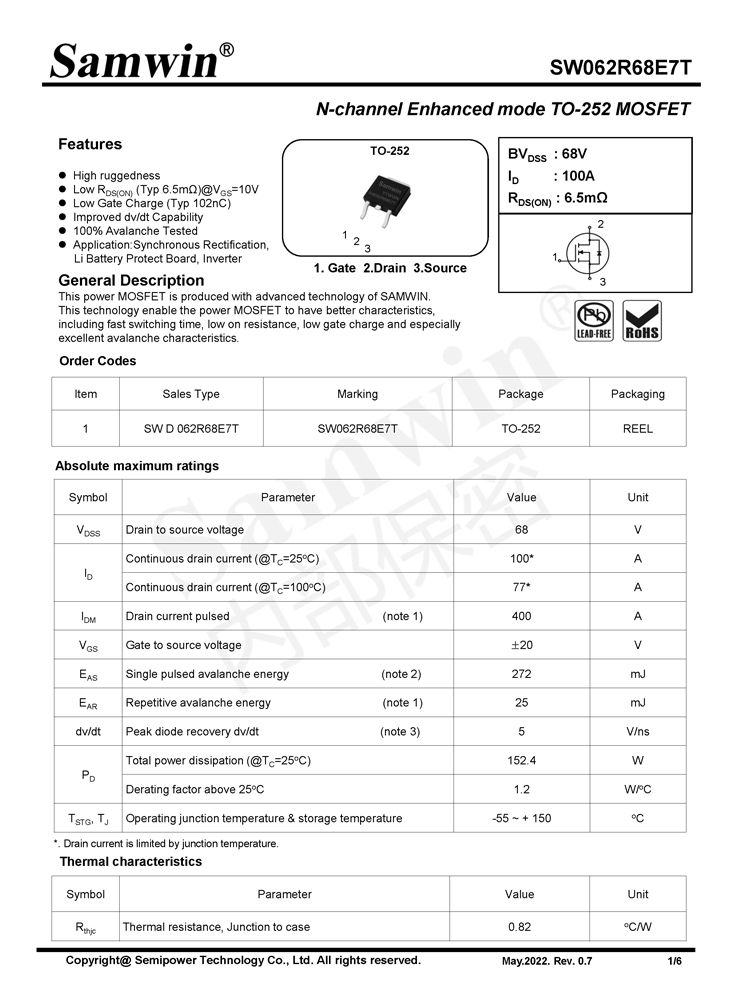

This power MOSFET is produced with advanced technology of SAMWIN.This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
⚫ High ruggedness
⚫ Low RDS(ON) (Typ 6.5mΩ)@VGS=10V
⚫ Low Gate Charge (Typ 102nC)
⚫ Improved dv/dt Capability
⚫ 100% Avalanche Tested
⚫ Application: Synchronous Rectification, Li Battery Protect Board, Inverter
