Aug 10 , 2024

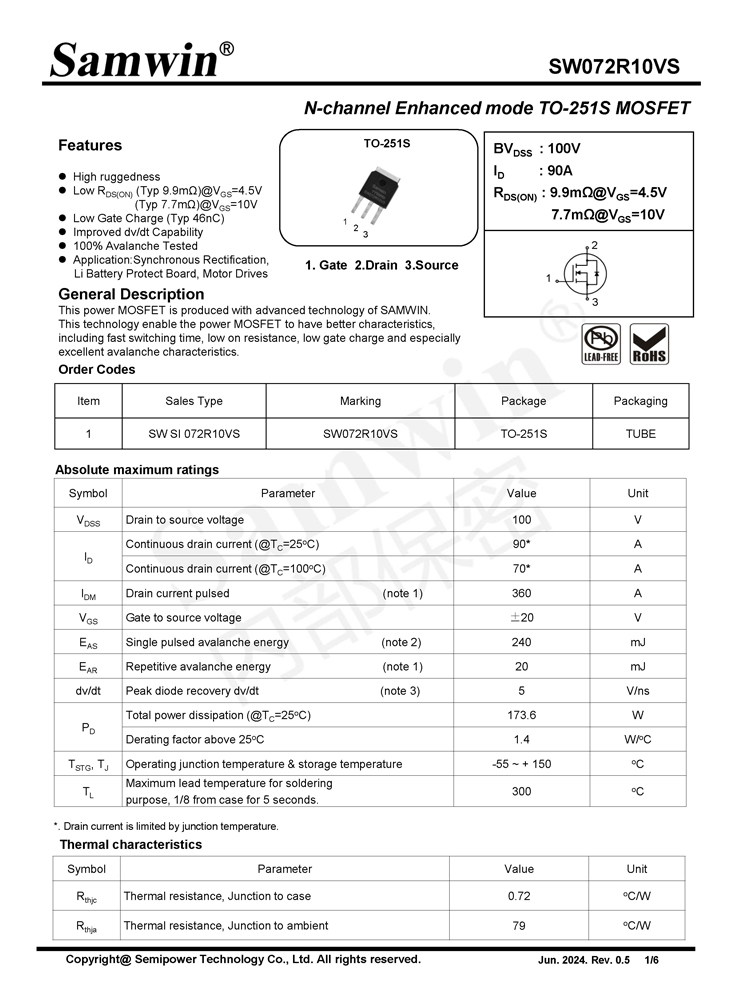

High ruggedness
Low RosN (Typ 9.9mΩ)@Vas=4.5V
(Typ 7.7mΩ)@Ves=10V
Low Gate Charge (Typ 46nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: Synchronous Rectification, Li Battery Protect Board, Motor Drives
This power MOSFET is produced with advanced technology of SAMWIN.
This technology enables the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
