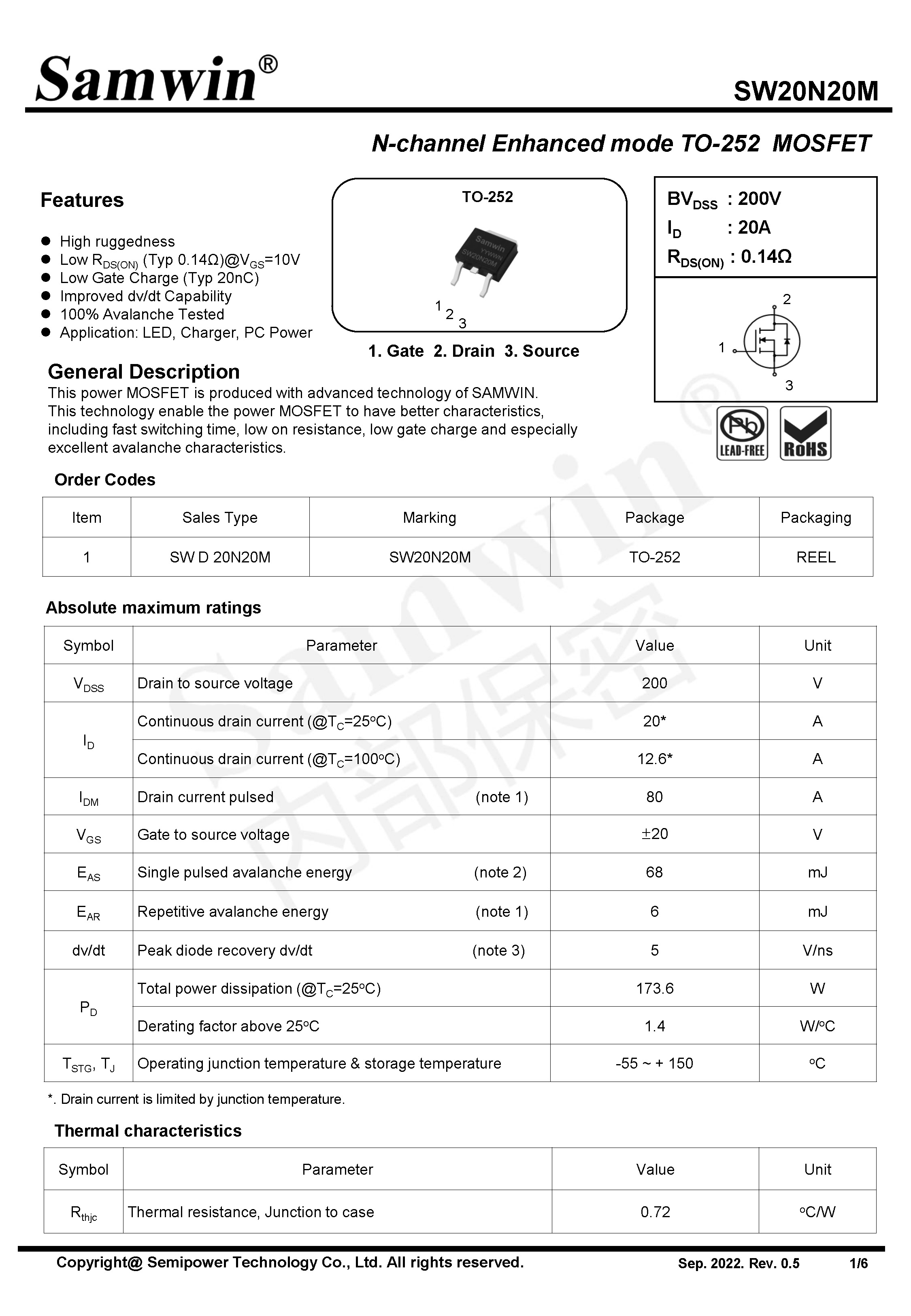

N-channel Enhanced mode TO 252 MOSFET
Features
- High ruggedness
- Low R DS( ON ))(T yp 0.14 Ω )@V GS 10 V
- Low Gate Charge ( Typ 20nC)
- Improved dv/dt Capability
- 100% Avalanche Tested
- Application: LED, Charger, PC Power
General Description：
This power MOSFET is produced with advanced technology of SAMWIN.This technology enable the power MOSFET to have better characteristics,including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
Disclairation:
- All the data&curve within this document was tested in SEMIPOWER TESTING&APPLICATION CENTER.
- This product has passed the PCT,TC,HTRB,HTGB,HAST,PC and Solderdunk reliability testing.
- Qualification Standards can also be found on the Web site www.samwinsemi.com.
- Any advice, please send your proposal to sales@samwinsemi.com.
