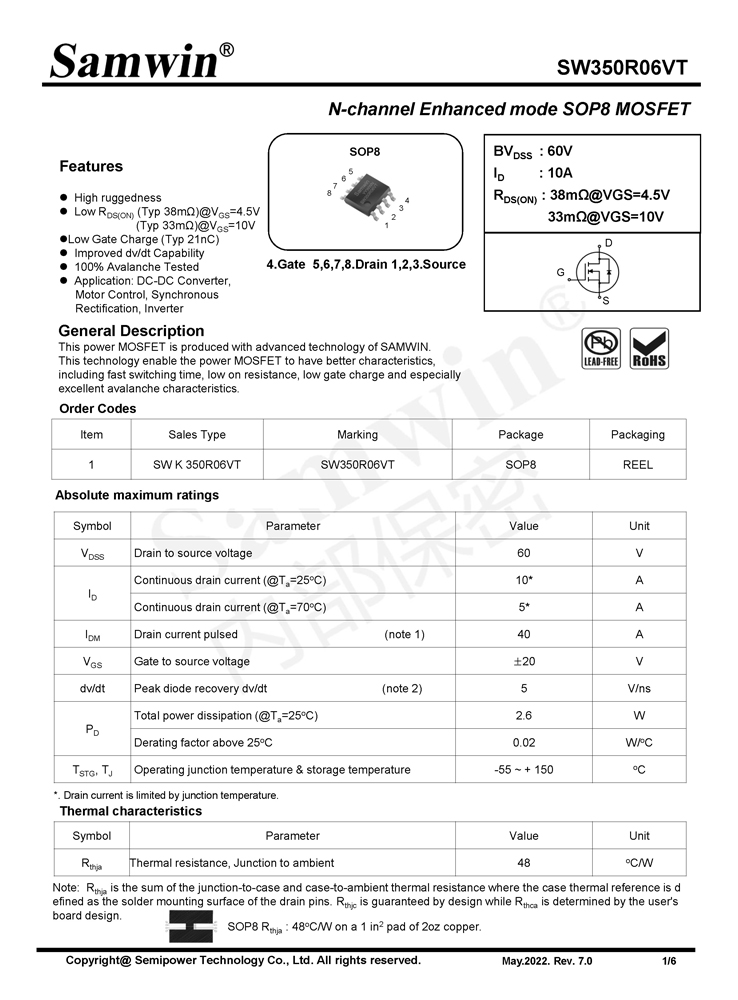

High ruggedness
Low RDS(ON) (Typ 38mΩ)@VGS=4.5V
(Typ 33mΩ)@VGS=10V
Low Gate Charge (Typ 21nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: DC-DC Converter, Motor Control, Synchronous Rectification, Inverter
This power MOSFET is produced with advanced technology of SAMWVIN.
This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
