SW036R68E8T

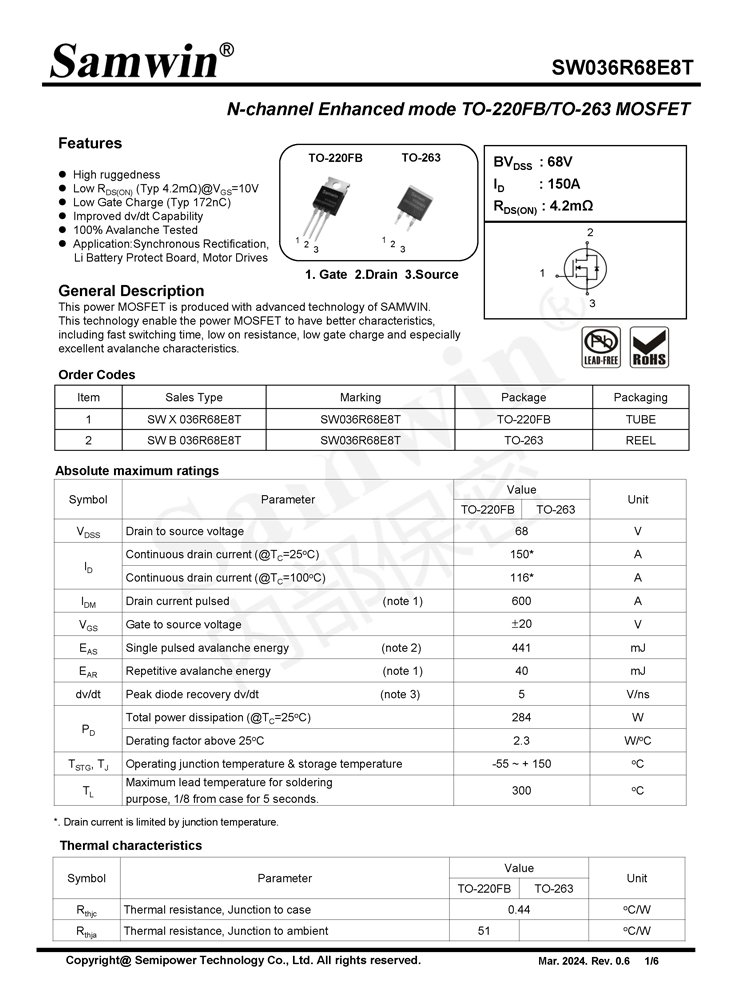

SW036R68E8T N-Channel Trench Mosfet

Features

  • High ruggedness

  • Low RDS(ON) (Typ 4.2mΩ)@VGS=10V

  • Low Gate Charge (Typ 172nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: Synchronous Rectification, Li Battery Protect Board, Motor Drives


General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

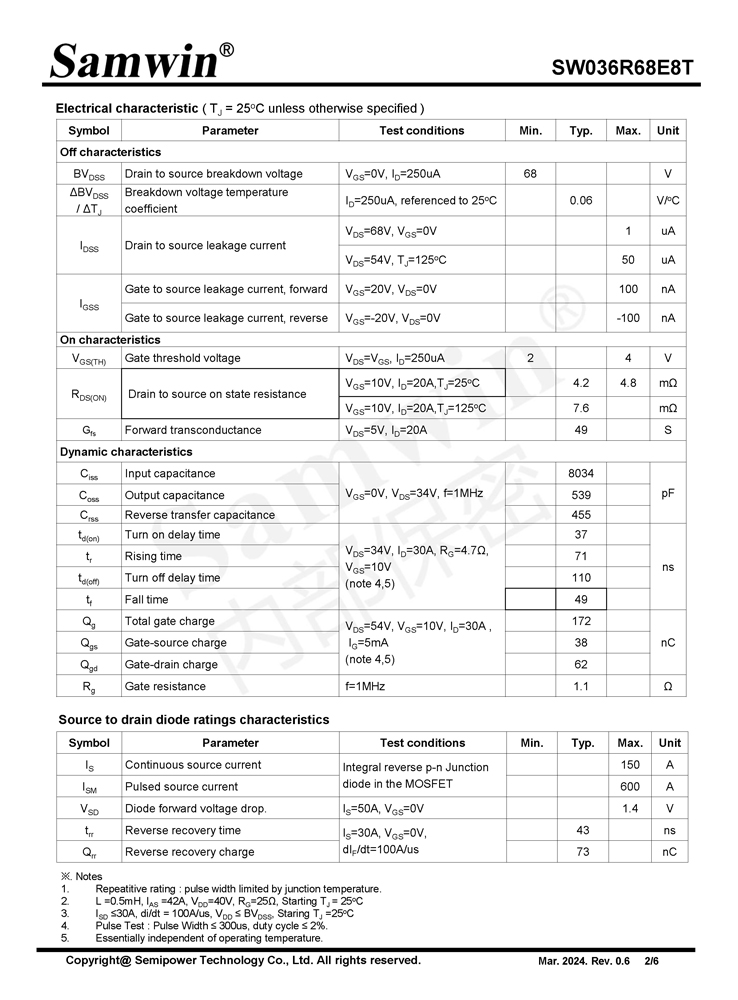

Samwin SW036R68E8T N-channel Enhanced mode TO-220FB/TO-263 MOSFET

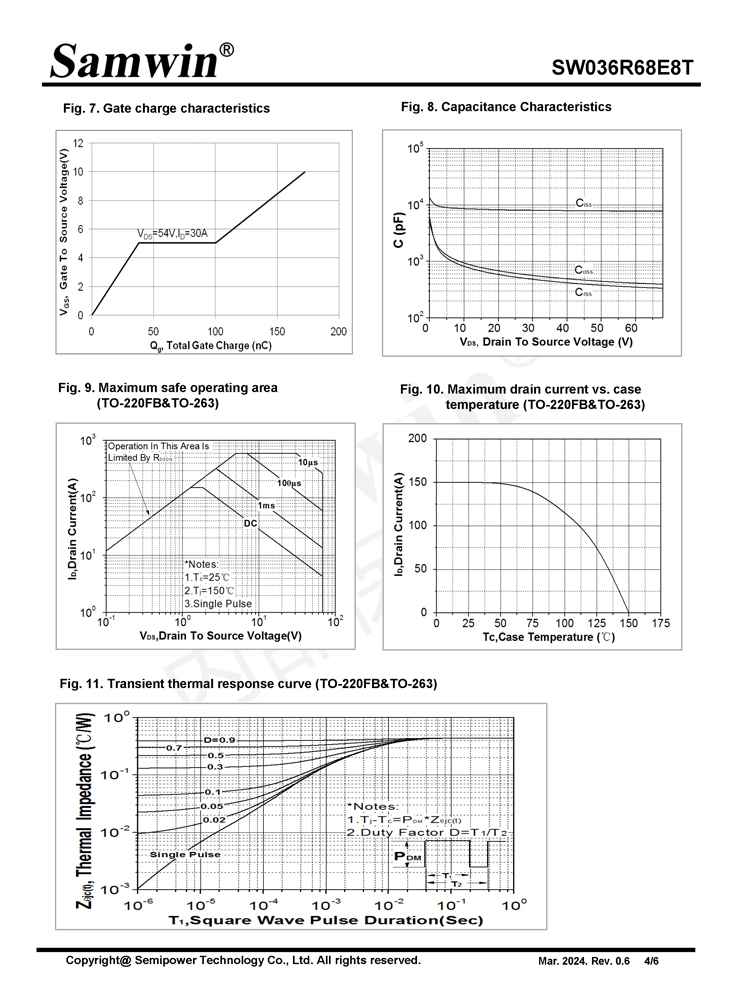

Samwin SW036R68E8T N-channel Enhanced mode TO-220FB/TO-263 MOSFET

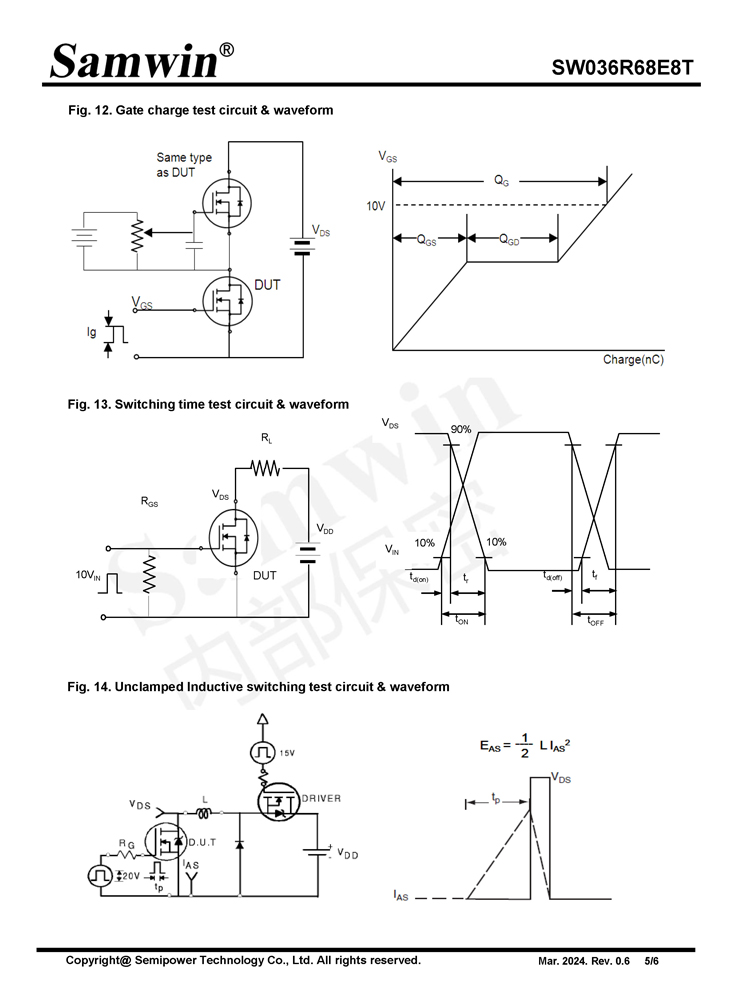

Samwin SW036R68E8T N-channel Enhanced mode TO-220FB/TO-263 MOSFET

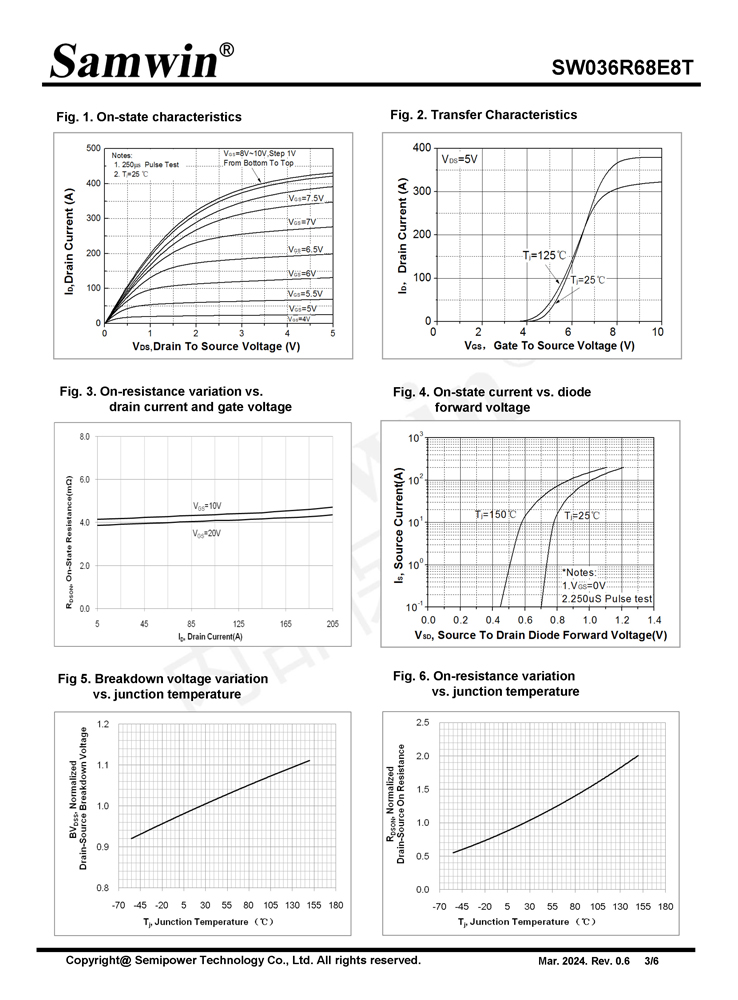

Samwin SW036R68E8T N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW036R68E8T N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW036R68E8T N-channel Enhanced mode TO-220FB/TO-263 MOSFET
