US1AF~US1MF

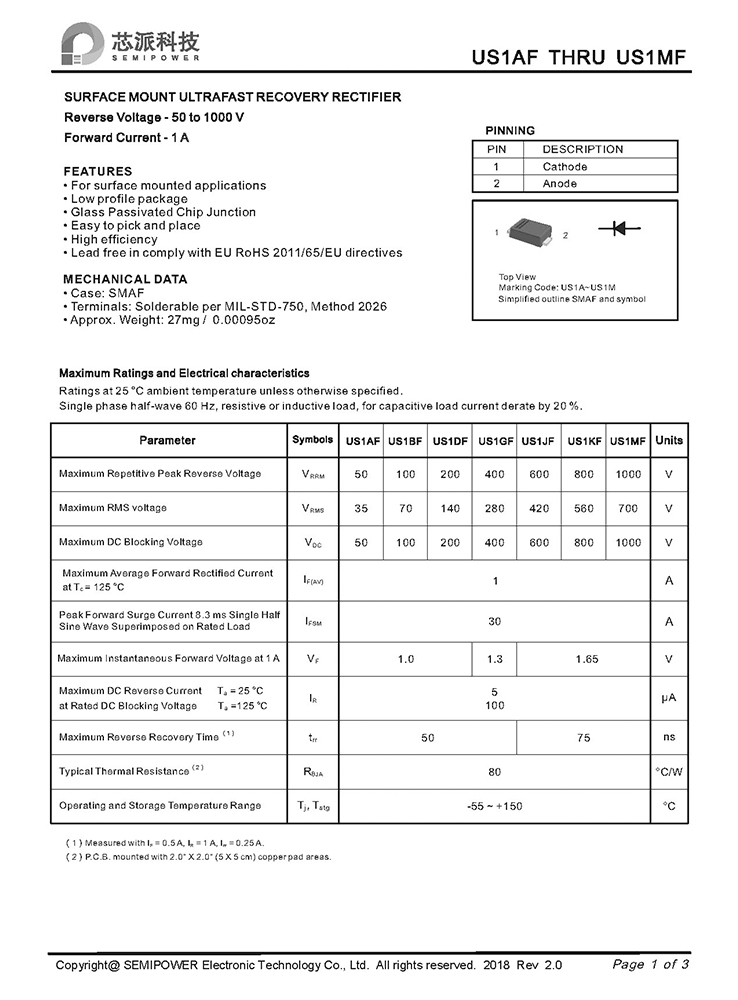

US1AF~US1MF High Efficiency Rectifier Diode

FEATURES

For surface mounted applications

Low profile package

Glass Passivated Chip Junction

Easy to pick and place

High efficiency

Lead free in comply with EU RoHS 2011/65/EU directives


MECHANICAL DATA

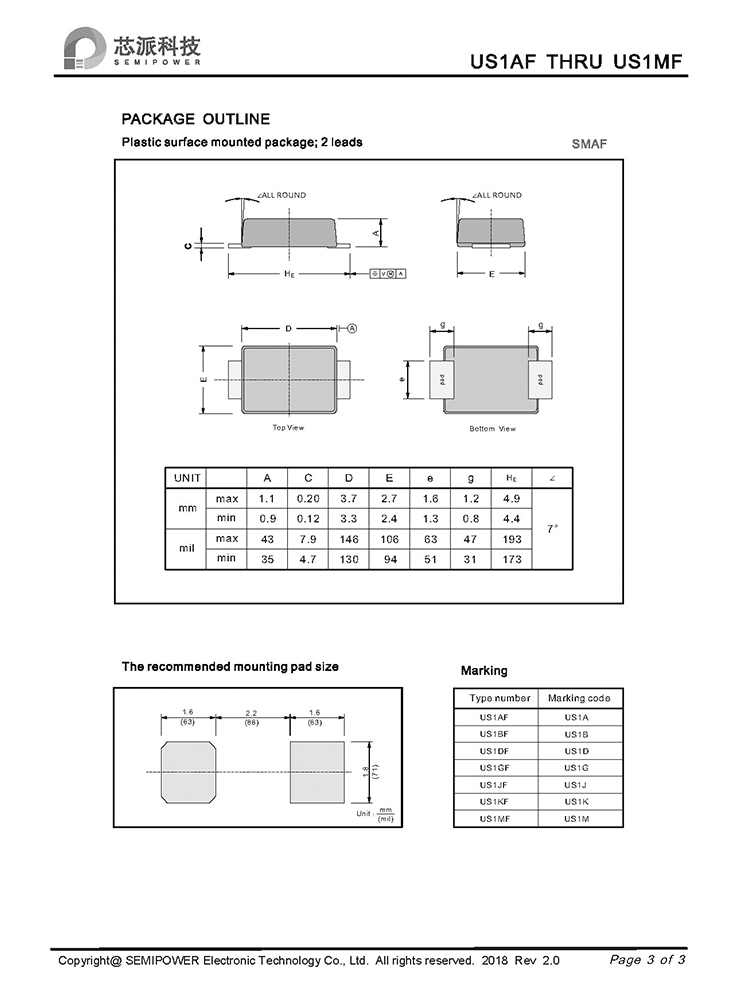

Case: SMAF

Terminals: Solderable per MIL-STD-750, Method 2026

Approx.Weight: 27mg/ 0.00095oz


Samwin US1AF THRU US1MF

Samwin US1AF THRU US1MF

Samwin US1AF THRU US1MF
