US1AW~US1MW

US1AW~US1MW High Efficiency Rectifier Diode

FEATURES

For surface mounted applications

Low profile package

Glass Passivated Chip Junction

High efficiency

Lead free in comply with EU RoHS 2011/65/EU directives


MECHANICAL DATA

Case: SOD-123FL

Terminals: Solderable per MIL-STD-750, Method 2026

Approx. Weight: 15mg 0.00053oz


Get A Quote

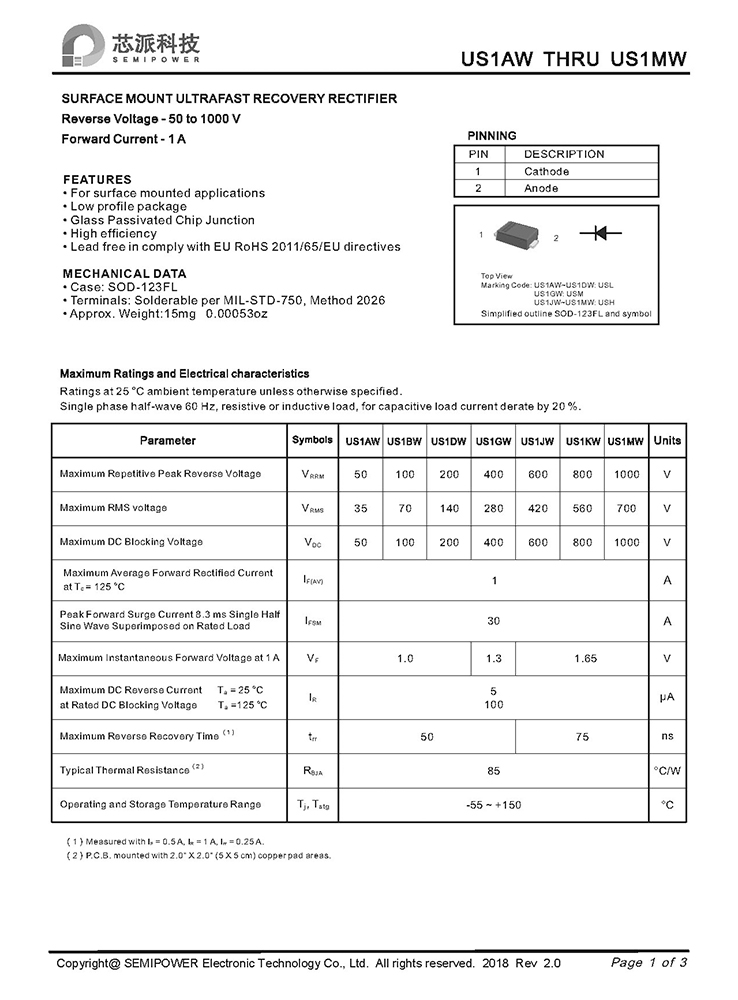

Samwin US1AW THRU US1MW

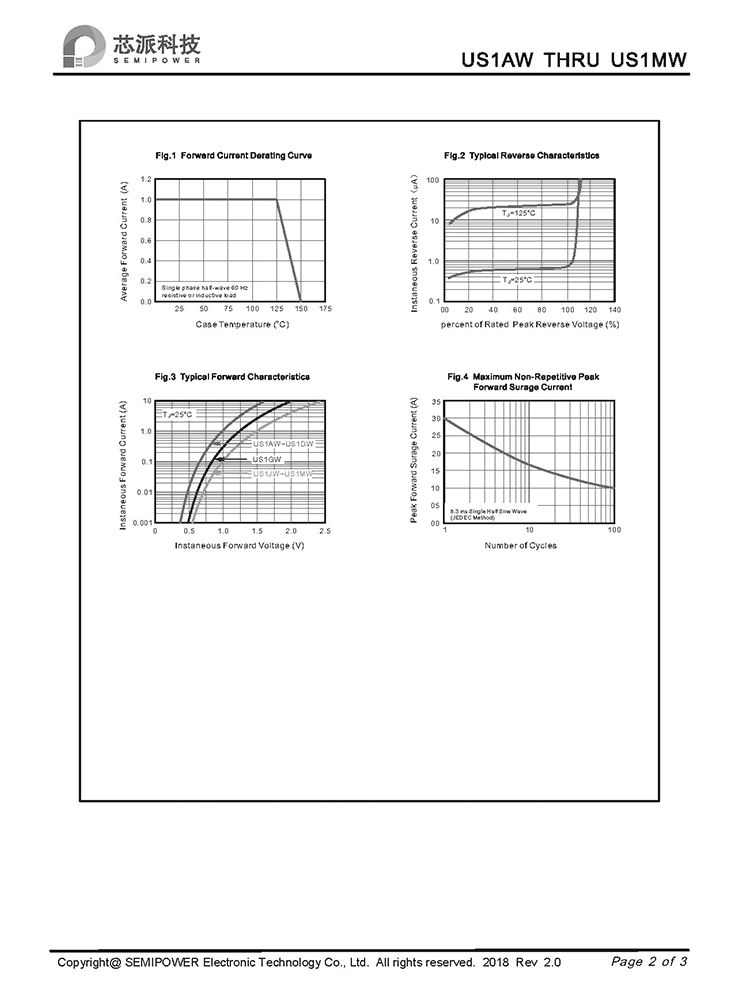

Samwin US1AW THRU US1MW

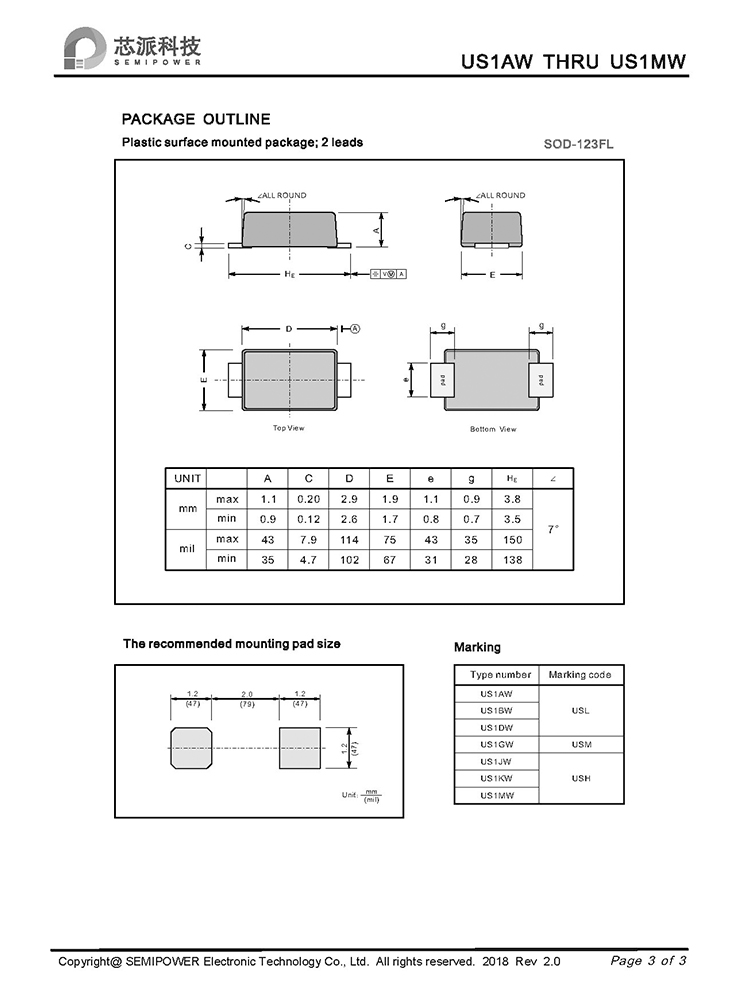

Samwin US1AW THRU US1MW
