Aug 10 , 2024

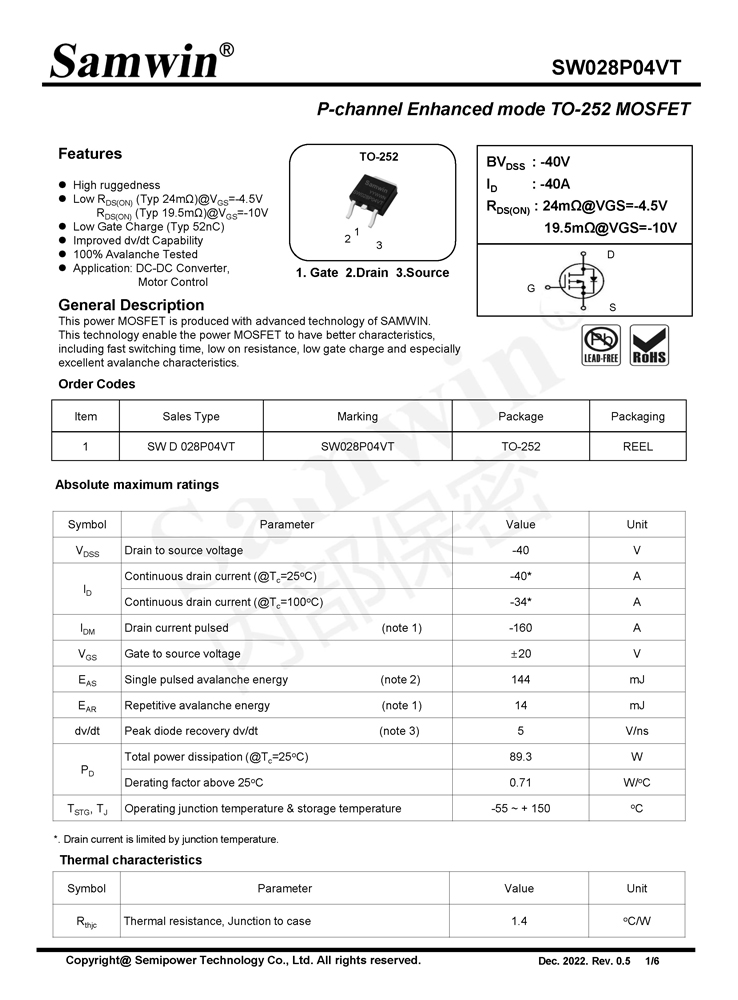

High ruggedness

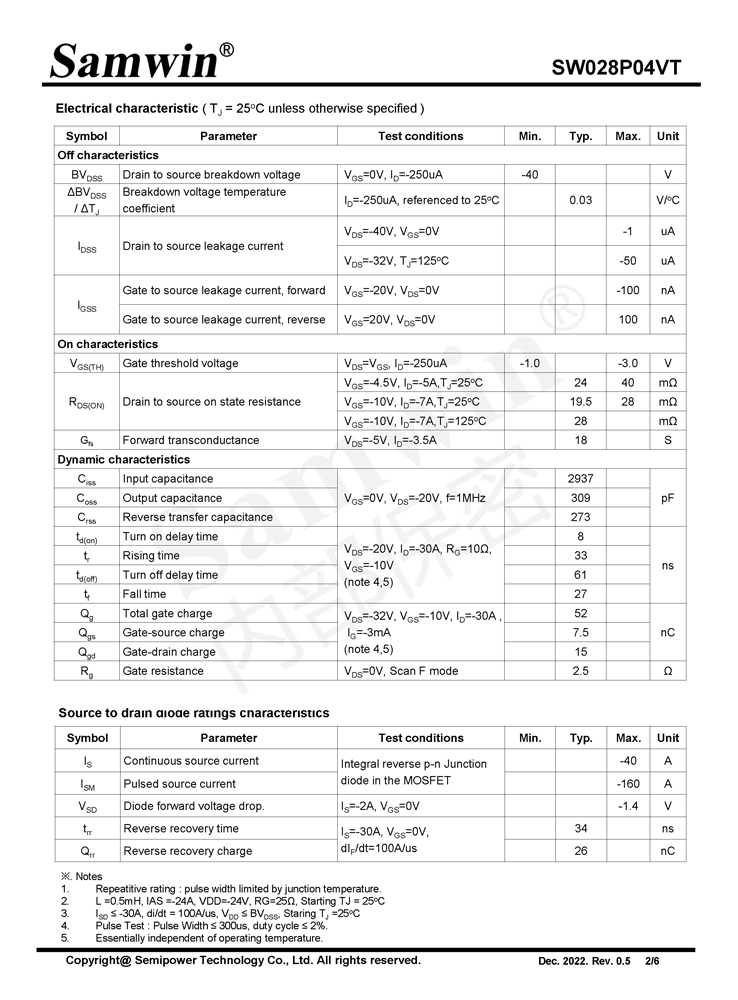

Low RDS(ON) (Typ 24mΩ)@VGS=-4.5V
RDS(ON) (Typ 19.5mΩ)@VGS=-10V
Low Gate Charge (Typ 52nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: DC-DC Converter, Motor Control
This power MOSFET is produced with advanced technology of SAMWVIN.
This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
