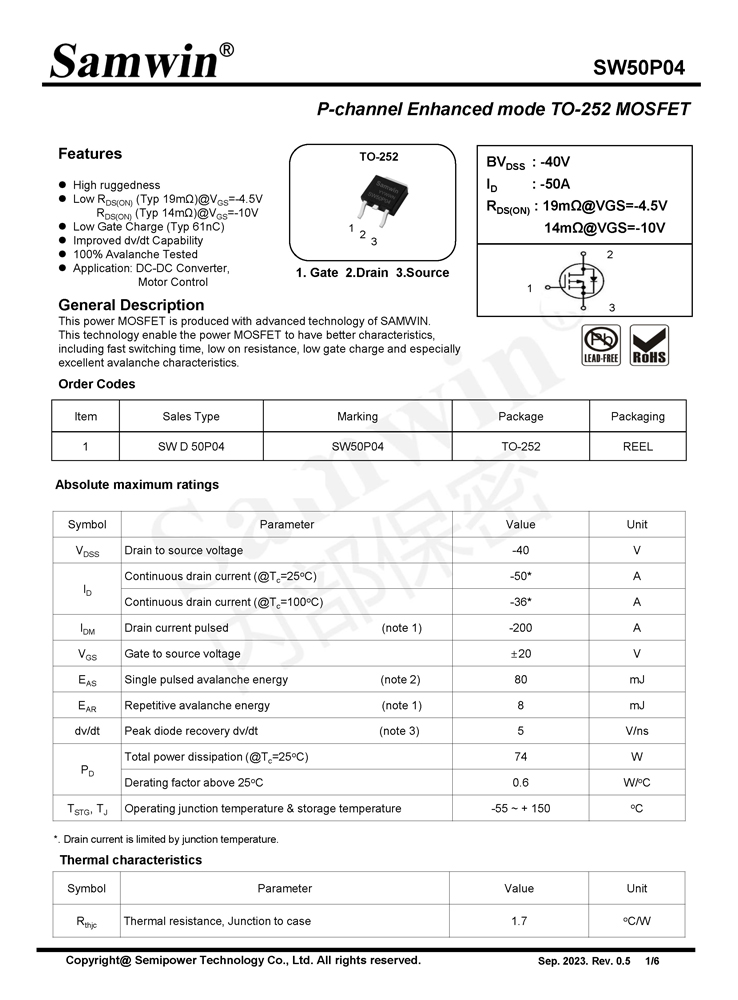

High ruggedness
Low RDS(ON) (Typ 19mΩ)@VGS=-4.5V
RDS(ON) (Typ 14mΩ)@VGS=-10V
Low Gate Charge (Typ 61nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: DC-DC Converter, Motor Control
This power MOSFET is produced with advanced technology of SAMWIN.
This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
