SW30P04

SW30P04 P-Channel Trench Mosfet

Features

  • High ruggedness

  • Low RDS(ON) (Typ 43mΩ)@VGS=-4.5V

            RDS(ON) (Typ 30mΩ)@VGS=-10V

  • Low Gate Charge (Typ 28nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: DC-DC Converter, Motor Control


General Description

This power MOSFET is produced with advanced technology of SAMWVIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

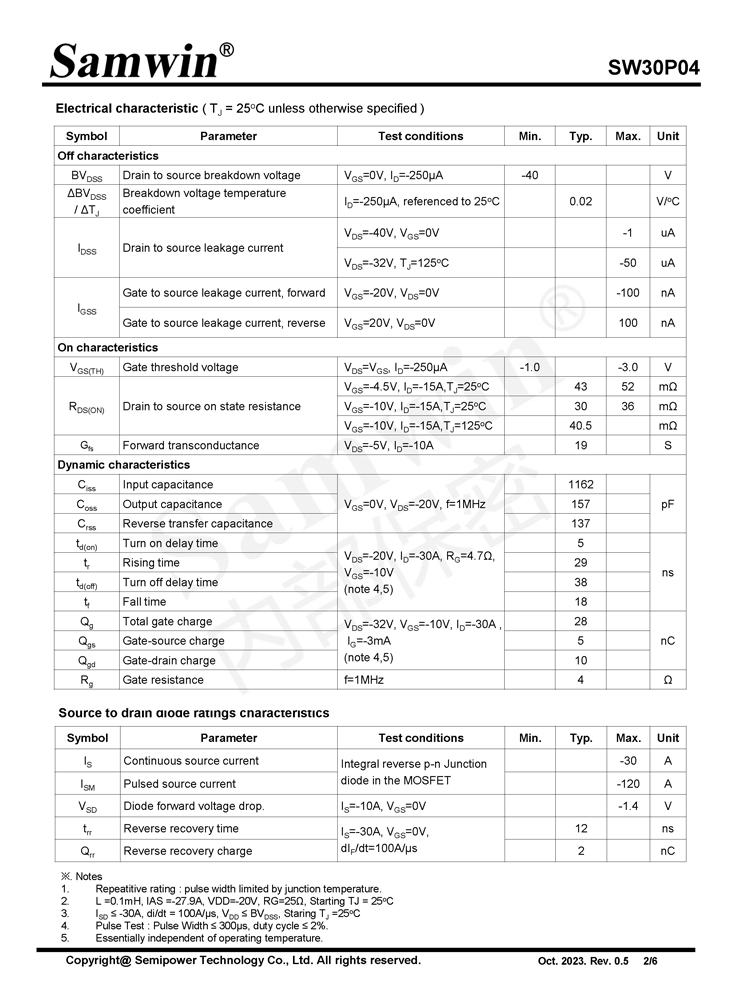

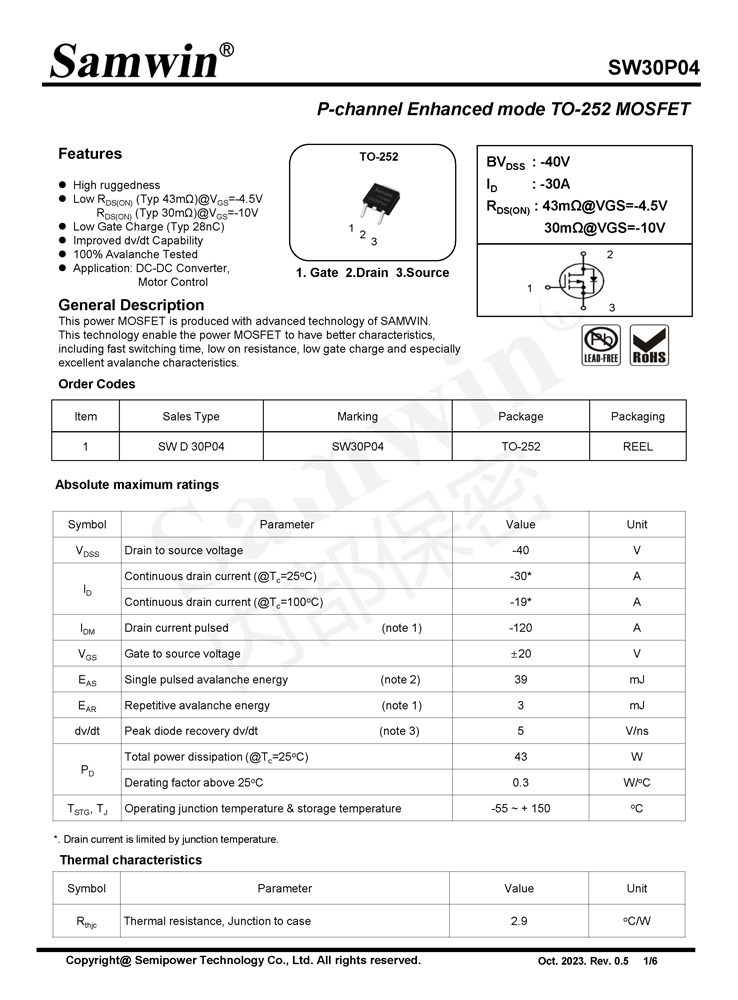

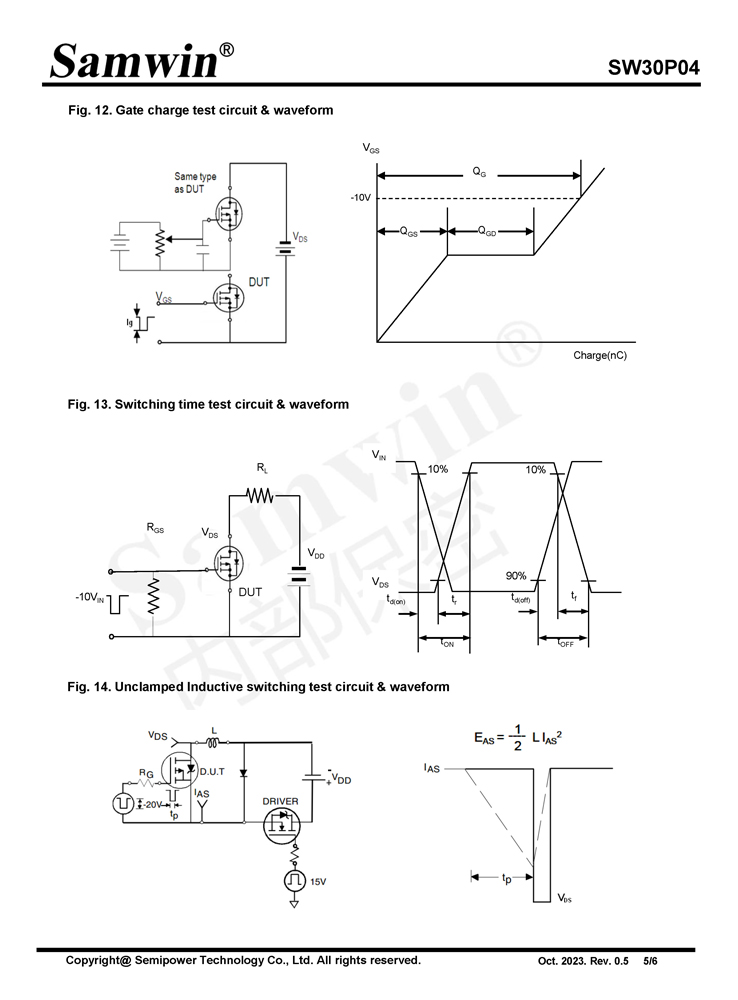

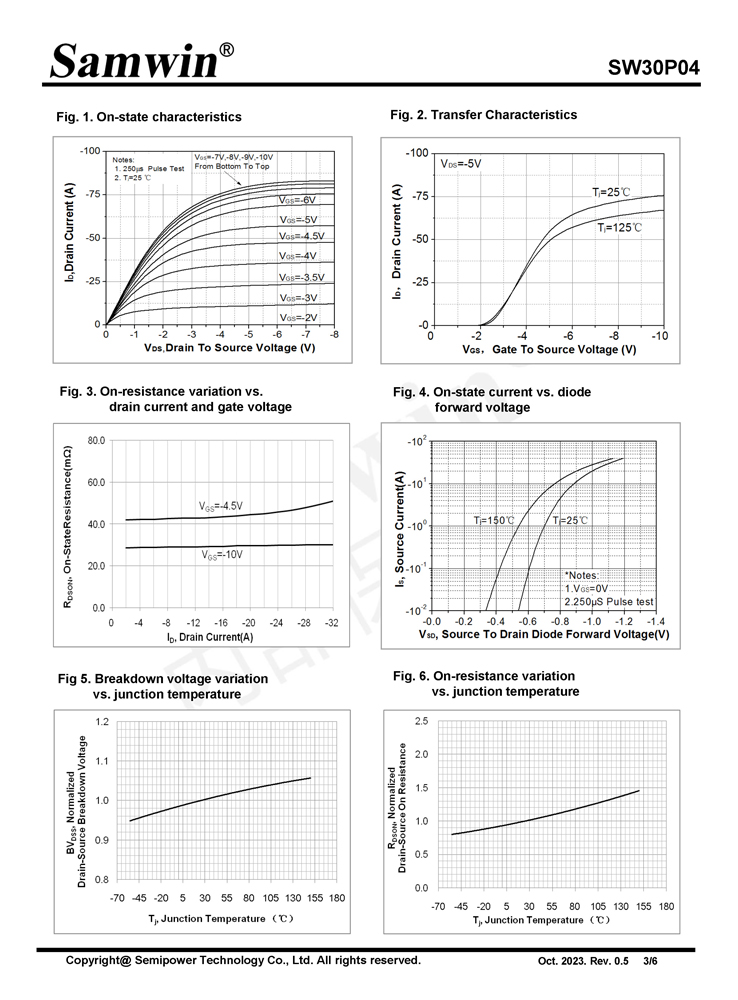

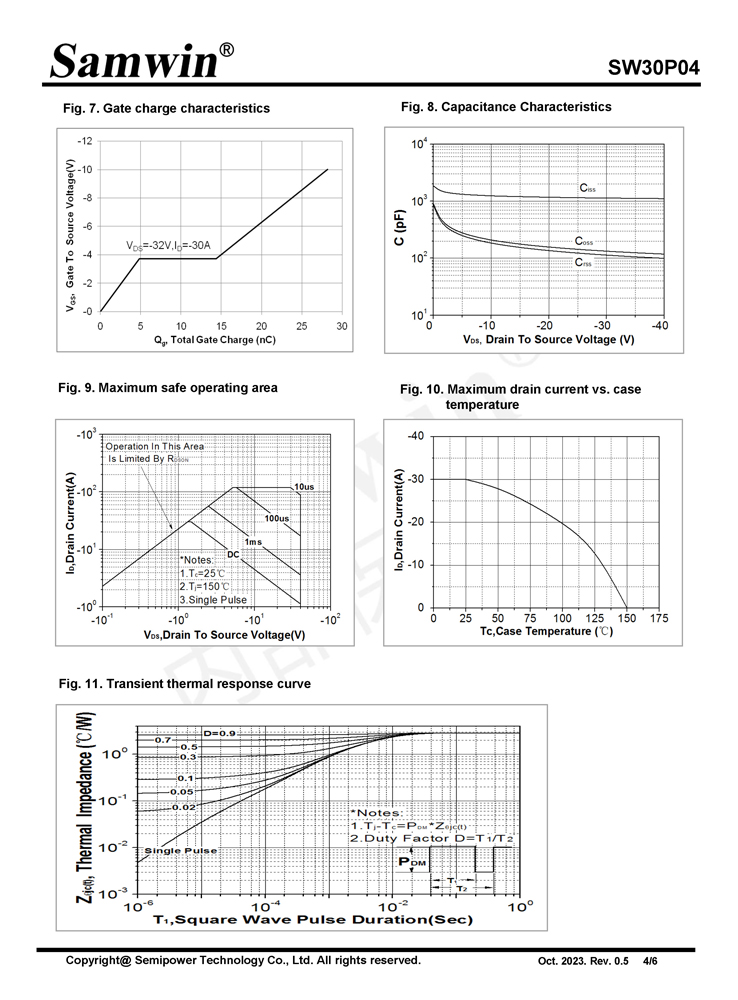

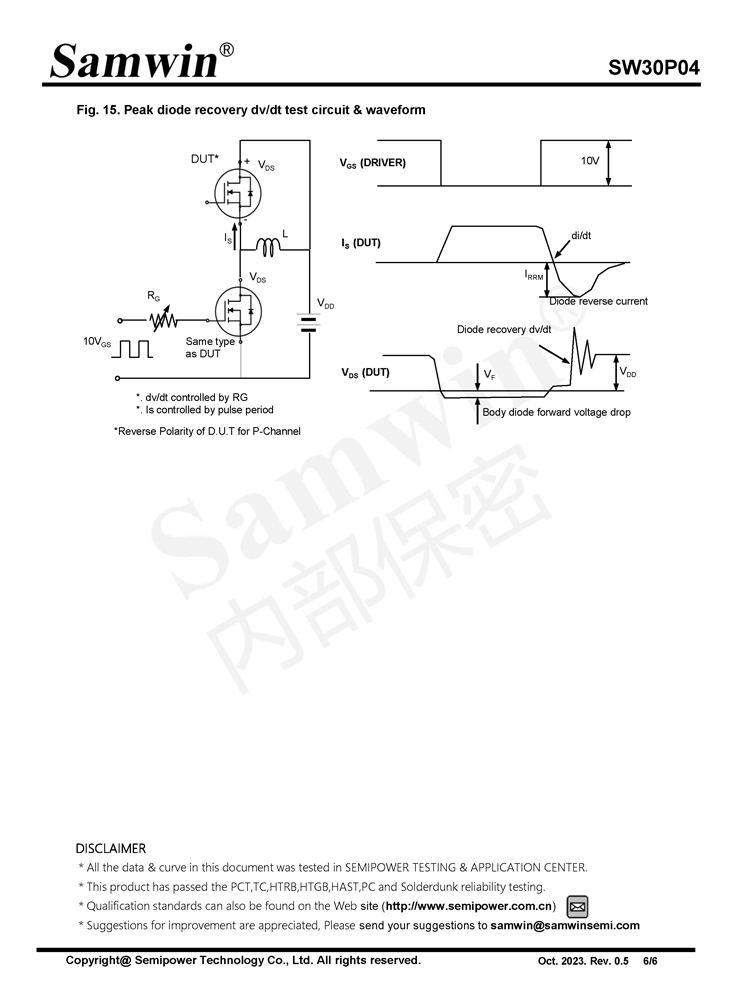

Samwin SW30P04 P-channel Enhanced mode TO-252 MOSFET

Samwin SW30P04 P-channel Enhanced mode TO-252 MOSFET

Samwin SW30P04 P-channel Enhanced mode TO-252 MOSFET

Samwin SW30P04 P-channel Enhanced mode TO-252 MOSFET

Samwin SW30P04 P-channel Enhanced mode TO-252 MOSFET

Samwin SW30P04 P-channel Enhanced mode TO-252 MOSFET
