Jul 09 , 2024

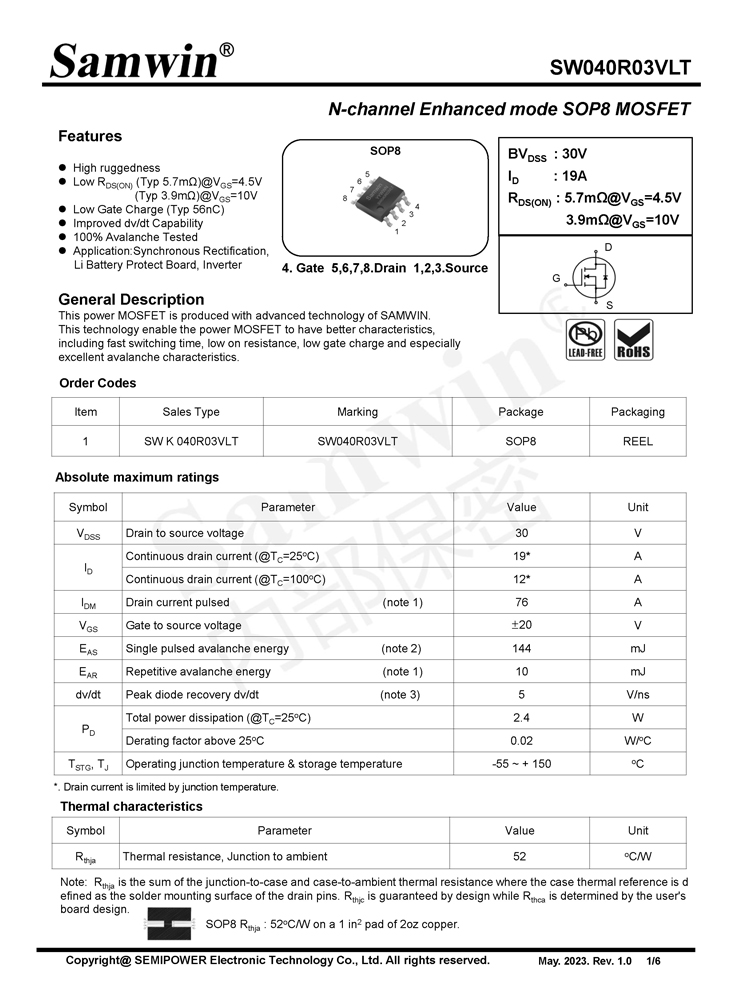

High ruggedness
Low RDS(ON) (Typ 5.7mΩ)@VGS=4.5V
(Typ 3.9mΩ)@VGS=10V
Low Gate Charge (Typ 56nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: Synchronous Rectification, Li Battery Protect Board, Inverter
This power MOSFET is produced with advanced technology of SAMWVIN.
This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
