SW065R03VLT

SW065R03VLT N-Channel Trench Mosfet

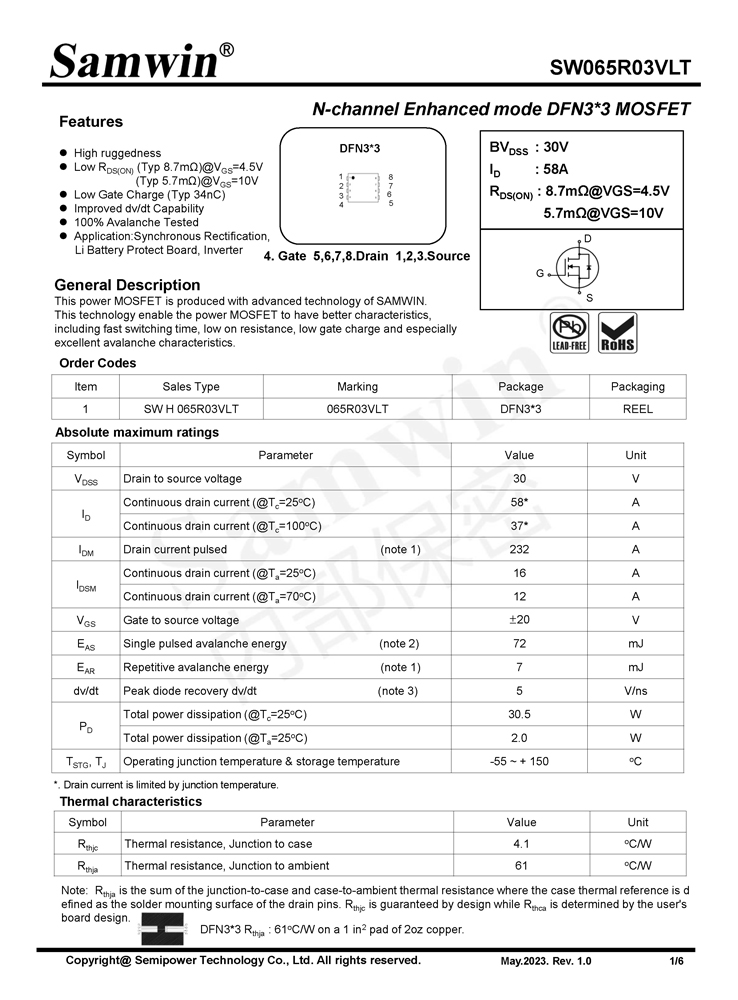

Features

  • High ruggedness

  • Low RDS(ON) (Typ 8.7mΩ)@VGS=4.5V

                           (Typ 5.7mΩ)@VGS=10V

  • Low Gate Charge (Typ 34nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: Synchronous Rectification, Li Battery Protect Board, Inverter


General Description

This power MOSFET is produced with advanced technology of SAMWVIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.


Samwin SW065R03VLT N-channel Enhanced mode DFN3*3 MOSFET

Samwin SW065R03VLT N-channel Enhanced mode DFN3*3 MOSFET

Samwin SW065R03VLT N-channel Enhanced mode DFN3*3 MOSFET

Samwin SW065R03VLT N-channel Enhanced mode DFN3*3 MOSFET

Samwin SW065R03VLT N-channel Enhanced mode DFN3*3 MOSFET

Samwin SW065R03VLT N-channel Enhanced mode DFN3*3 MOSFET
