SW075R68ET

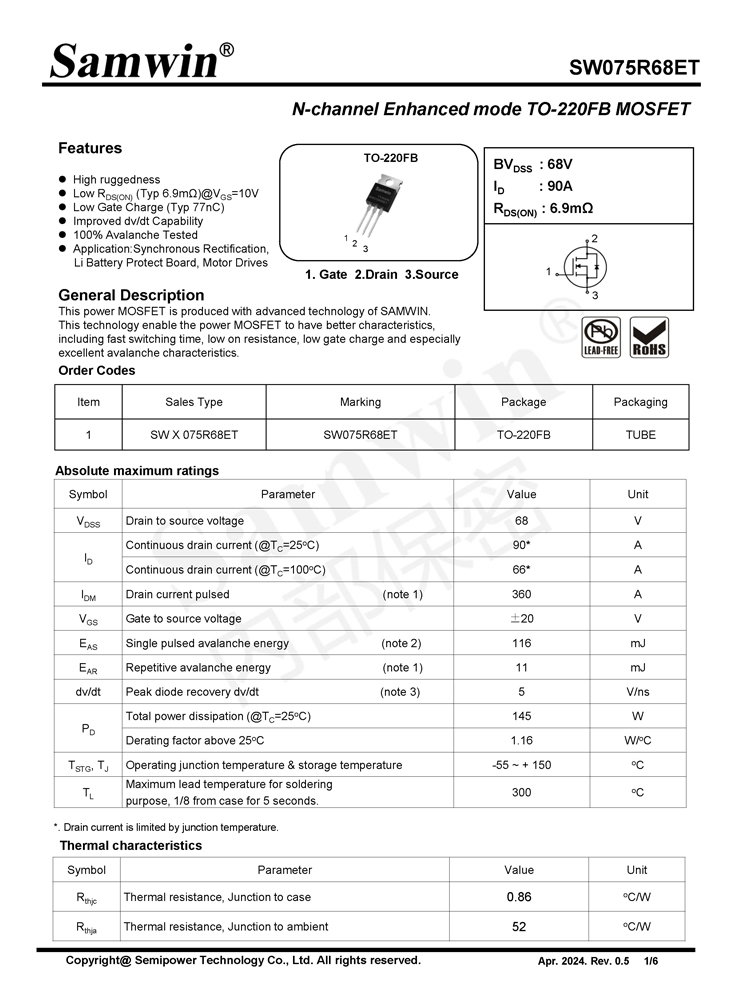

SW075R68ET N-Channel Trench Mosfet

Features

  • High ruggedness

  • Low RDS(ON) (Typ 6.9mΩ)@VGS=10V

  • Low Gate Charge (Typ 77nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: Synchronous Rectification, Li Battery Protect Board, Motor Drives


General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

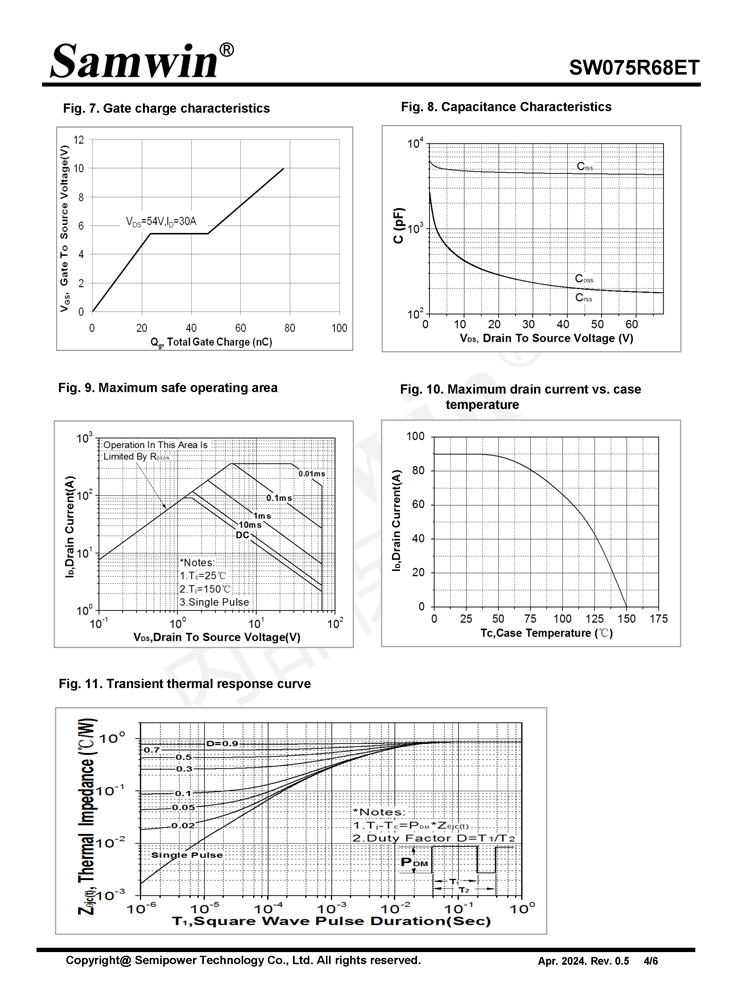

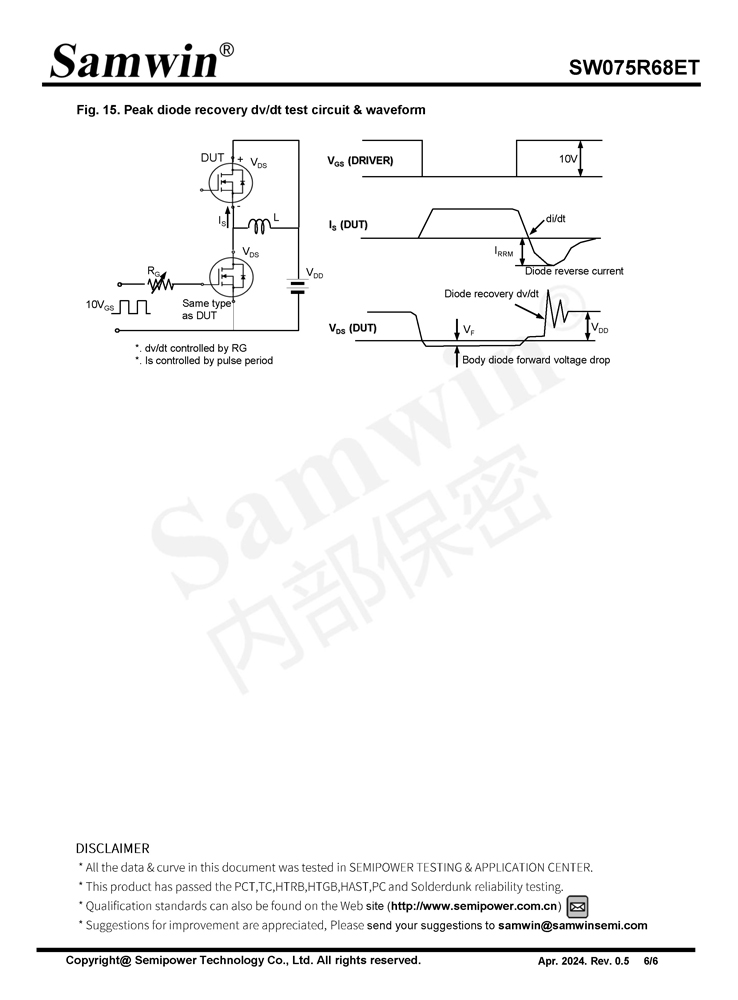

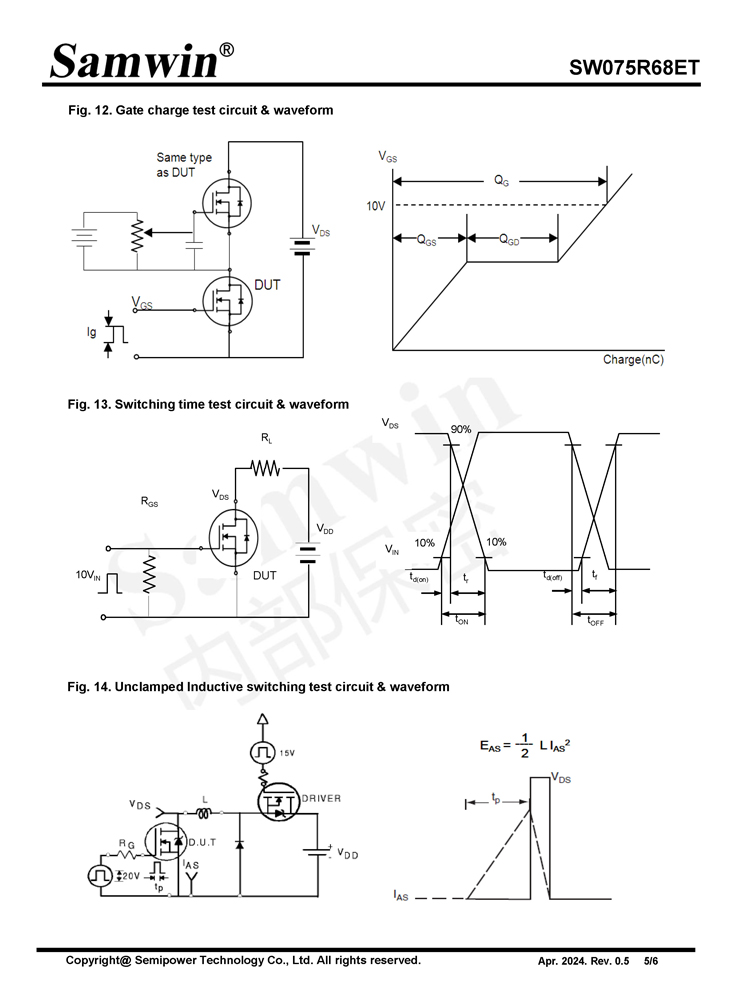

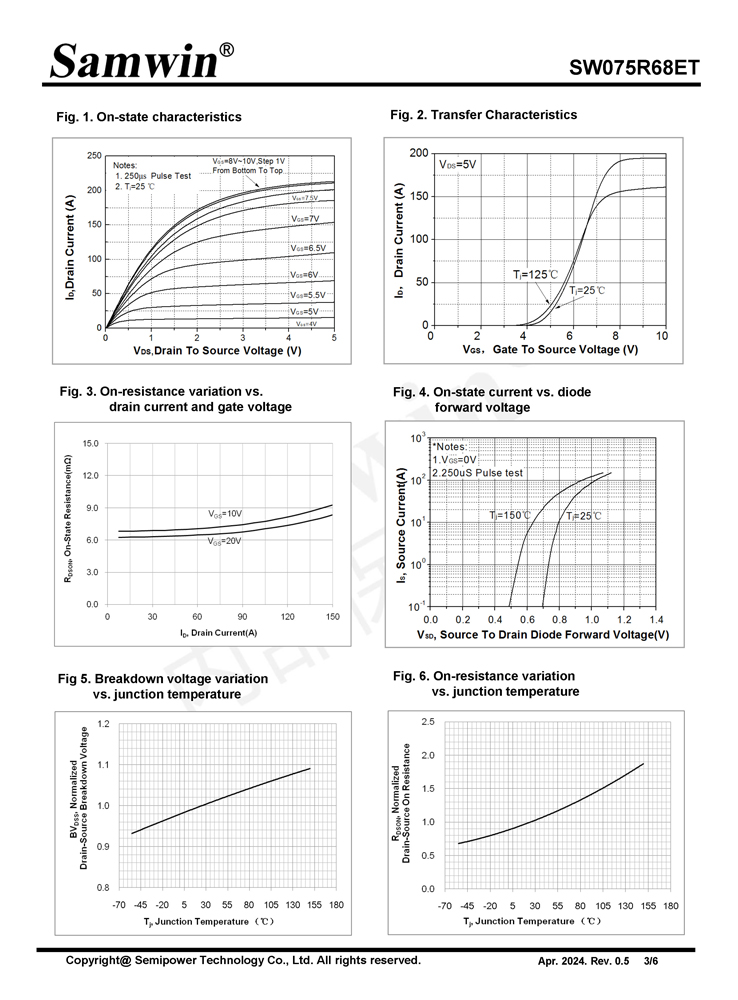

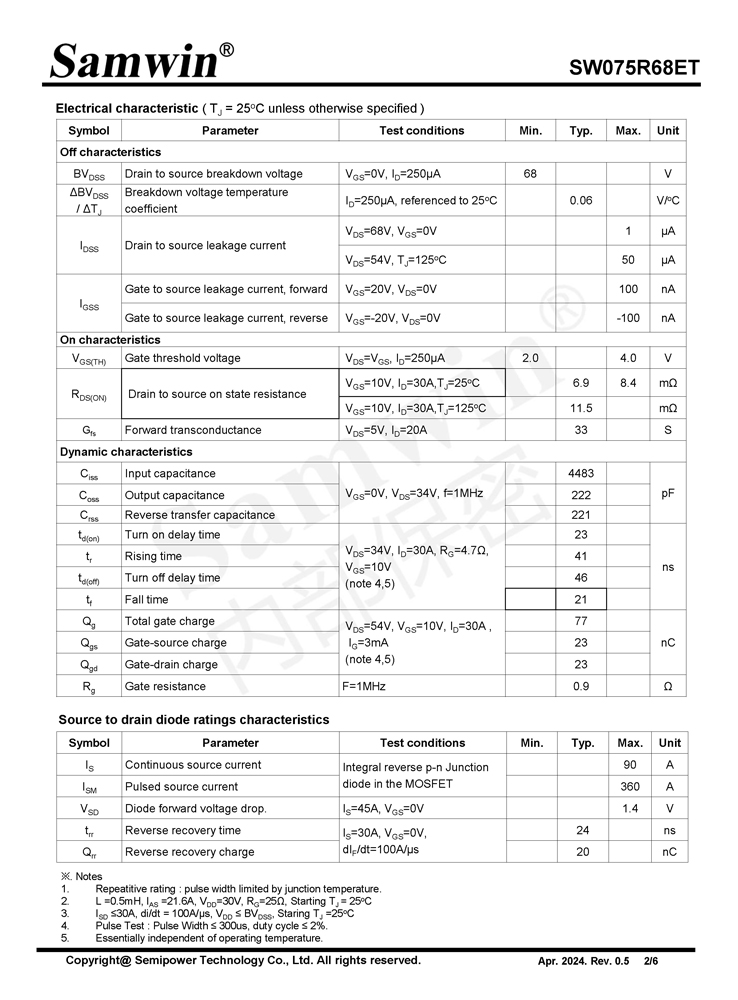

Samwin SW075R68ET N-channel Enhanced mode TO-220FB MOSFET

Samwin SW075R68ET N-channel Enhanced mode TO-220FB MOSFET

Samwin SW075R68ET N-channel Enhanced mode TO-220FB MOSFET

Samwin SW075R68ET N-channel Enhanced mode TO-220FB MOSFET

Samwin SW075R68ET N-channel Enhanced mode TO-220FB MOSFET

Samwin SW075R68ET N-channel Enhanced mode TO-220FB MOSFET
