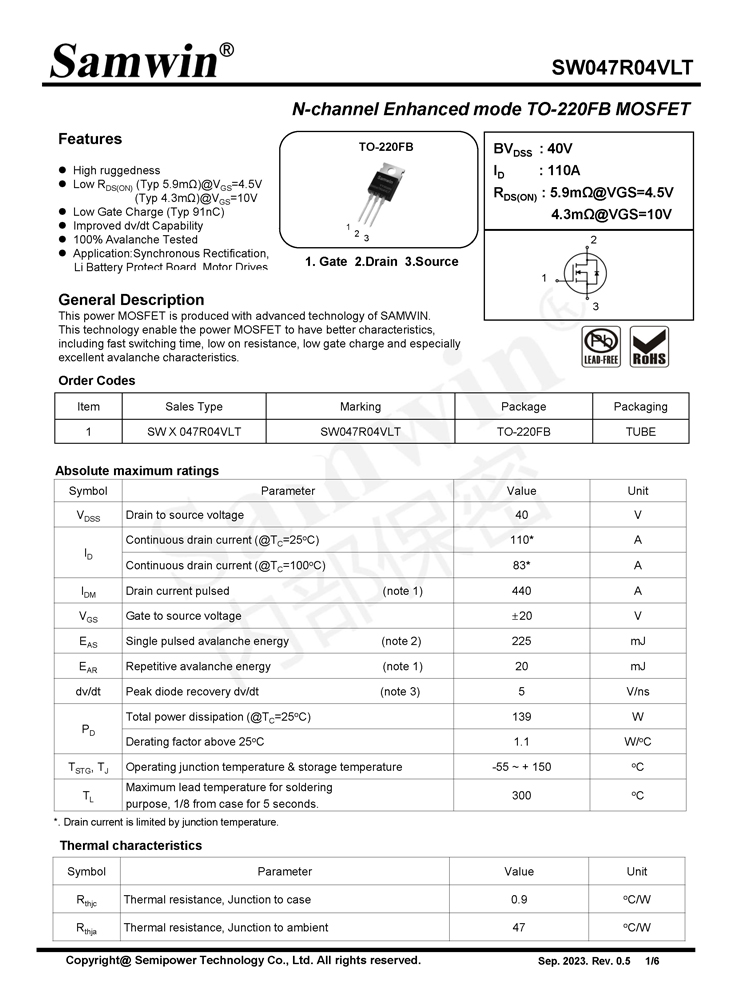

SW047R04VLT

SW047R04VLT N-Channel Trench Mosfet

Features

High ruggedness
Low RDS(ON) (Typ 5.9mΩ)@VGS=4.5V
(Typ 4.3mΩ)@VGS=10V
Low Gate Charge (Typ 91nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: Synchronous Rectification, Li Battery Protect Board Motor Drives

General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

Get A Quote

Samwin SW047R04VLT N-channel Enhanced mode TO-220FB MOSFET

We’re here to help. Fill out this brief form and a representative will contact you.
