SW120R06VLS

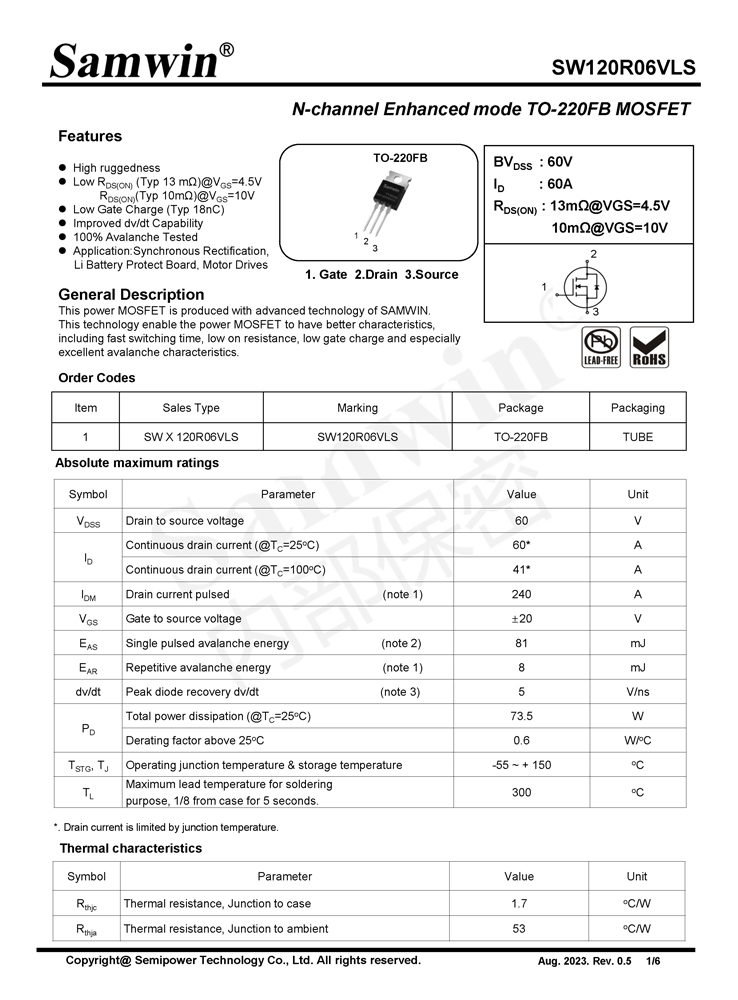

SW120R06VLS N-Channel Trench Mosfet

Features

High ruggedness
Low RDS(ON) (Typ 13mΩ)@VGS=4.5V
RDS(ON) (Typ 10mΩ)@VGS=10V
Low Gate Charge (Typ 18nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: Synchronous Rectification, Li Battery Protect Board, Motor Drives

General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

Get A Quote

Samwin SW120R06VLS N-channel Enhanced mode TO-220FB MOSFET

We’re here to help. Fill out this brief form and a representative will contact you.
