SW210R06VLS

SW210R06VLS N-Channel SGT MOSFET

General Description:

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.



Features:

  • High ruggedness

  • Low R»soN (Typ 25mΩ)@Ves=4.5V

  • (Typ 19.8mQ)@Vs=10V

  • Low Gate Charge (Typ 10nC)

  • lmproved dv/dt Capability

  • 100% Avalanche Tested

  • Application:Synchronous Rectification, Li Battery Protect Board, Inverter

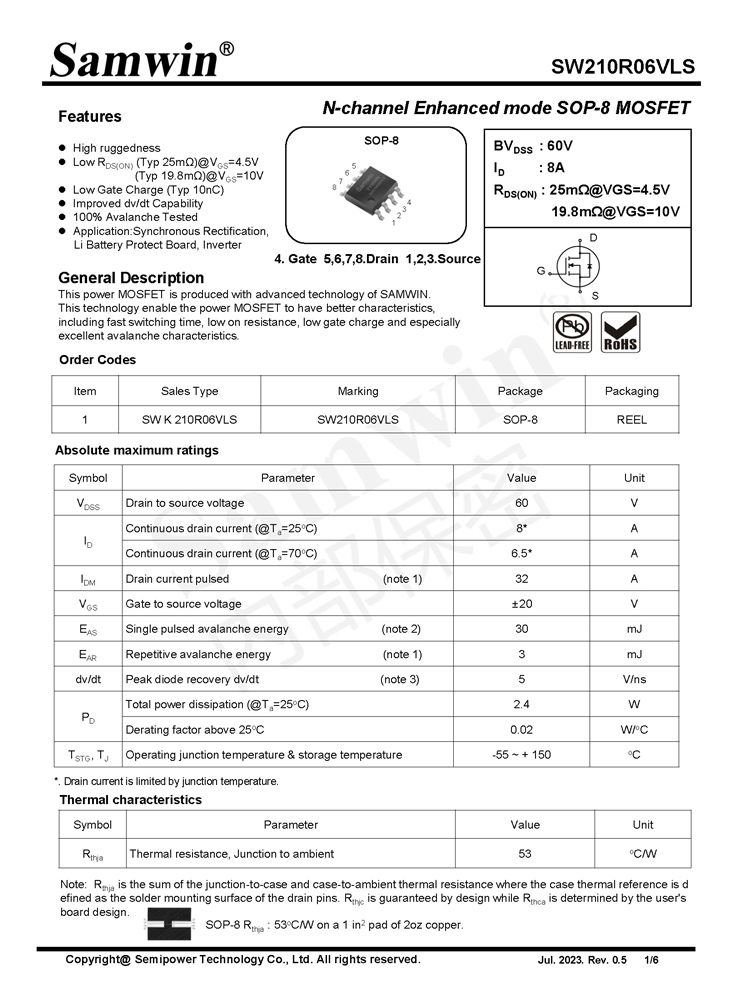

Samwin SW210R06VLS N-channel Enhanced mode SOP-8 MOSFET

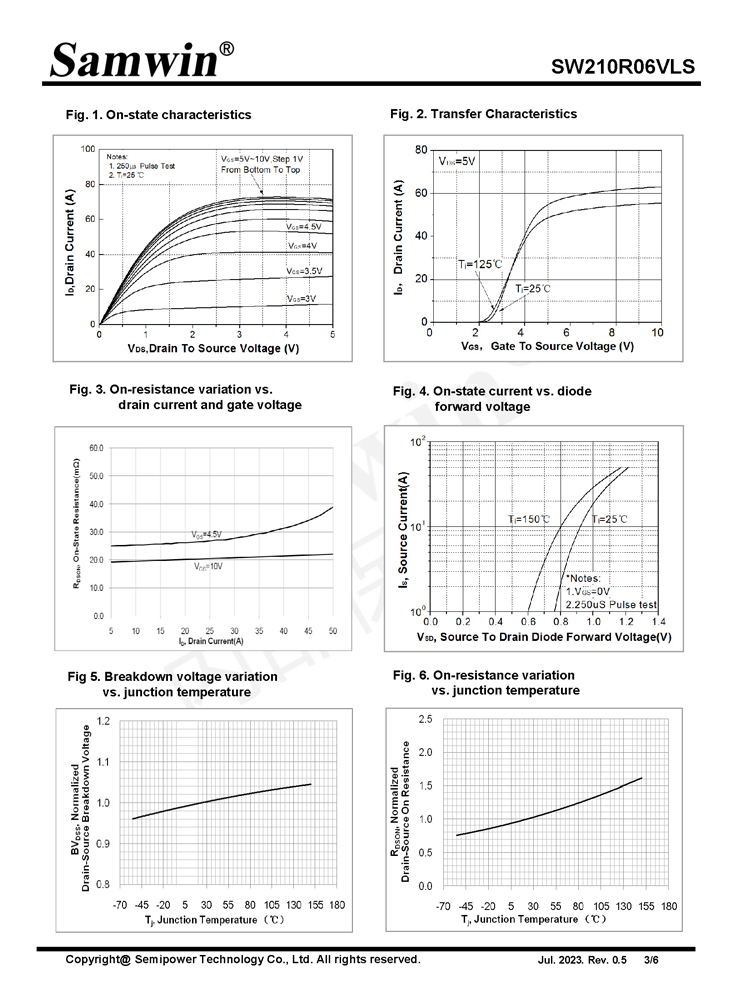

Samwin SW210R06VLS N-channel Enhanced mode SOP-8 MOSFET

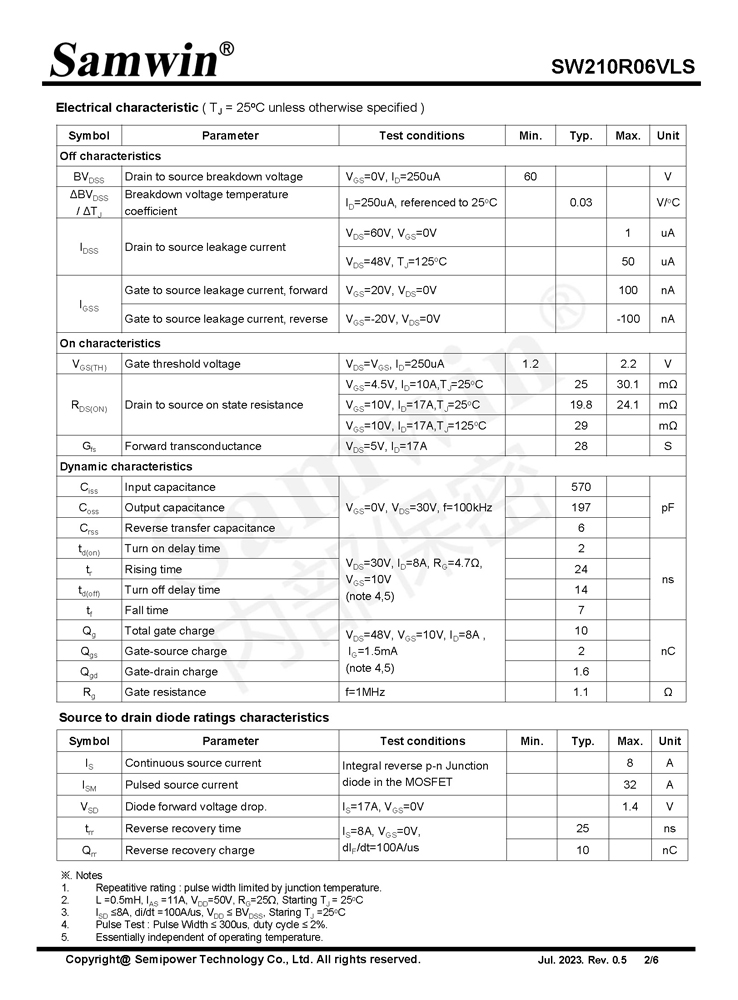

Samwin SW210R06VLS N-channel Enhanced mode SOP-8 MOSFET

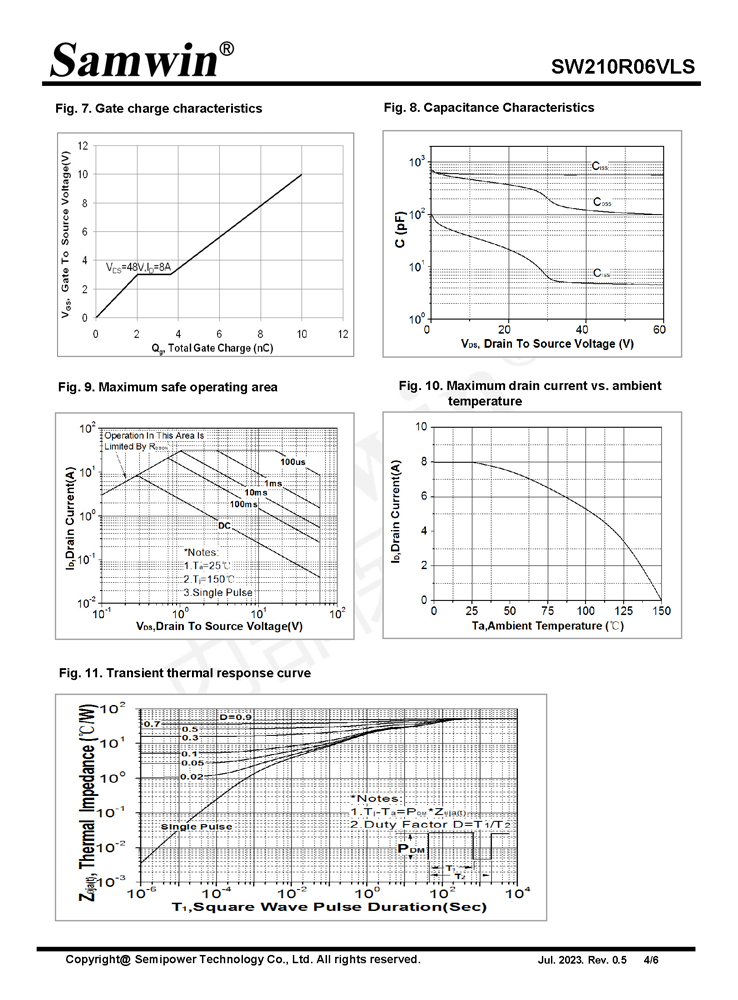

Samwin SW210R06VLS N-channel Enhanced mode SOP-8 MOSFET

Samwin SW210R06VLS N-channel Enhanced mode SOP-8 MOSFET

Samwin SW210R06VLS N-channel Enhanced mode SOP-8 MOSFET
