SW030R85E8S

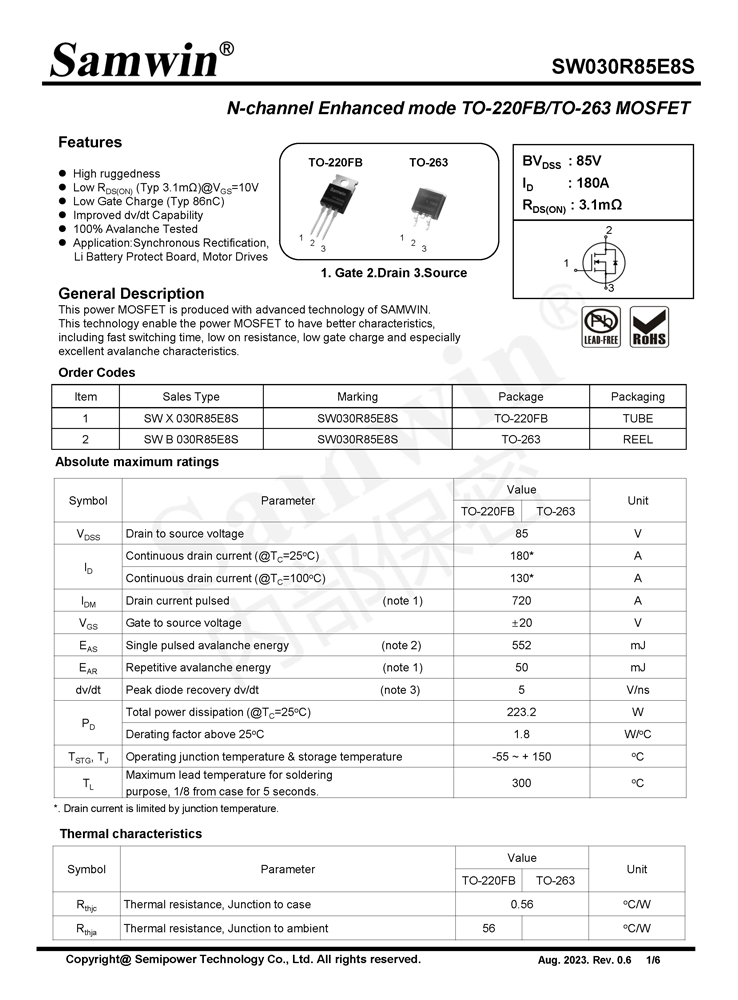

SW030R85E8S N-Channel SGT MOSFET

Features

  • High ruggedness

  • Low Rose (Typ 3.1mΩ)@Ves=10V

  • Low Gate Charge (Typ 86nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: Synchronous Rectification, Li Battery Protect Board, Motor Drives


Get A Quote

Samwin SW030R85E8S N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW030R85E8S N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW030R85E8S N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW030R85E8S N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW030R85E8S N-channel Enhanced mode TO-220FB/TO-263 MOSFET

Samwin SW030R85E8S N-channel Enhanced mode TO-220FB/TO-263 MOSFET
