Aug 10 , 2024

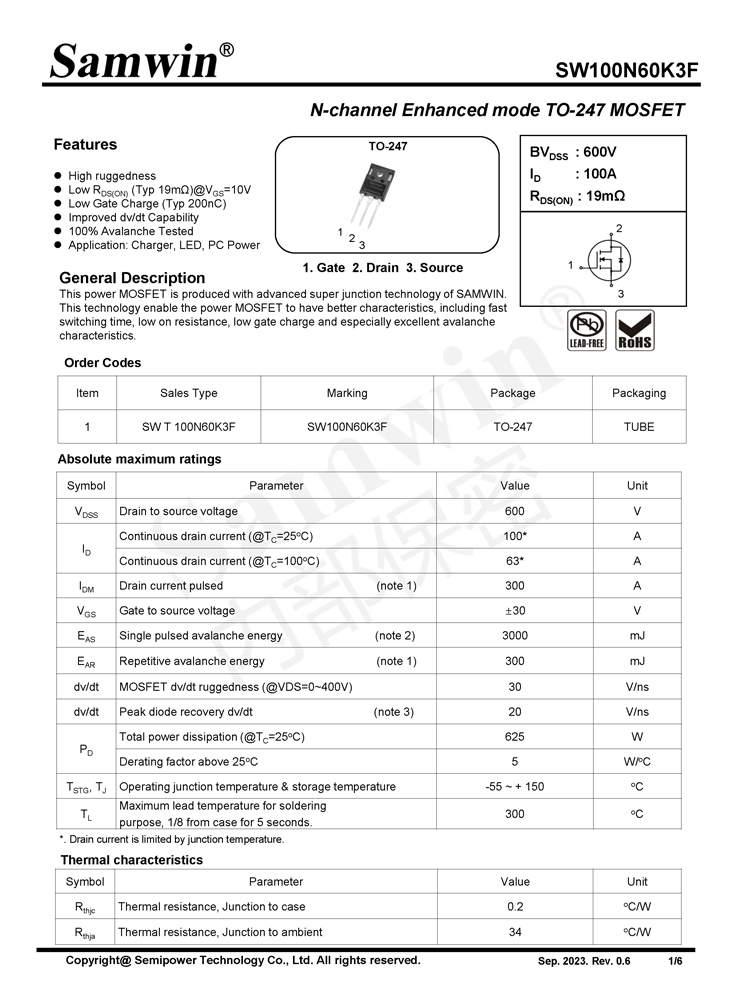

High ruggedness
Low RDS(ON) (Typ 19mΩ)@VGS=10V
Low Gate Charge (Typ 200nC)
Improved dv/dt Capability
100% Avalanche Tested
Application: Charger, LED, PC Power
This power MOSFET is produced with advanced super junction technology of SAMWIN.
This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
