SW22N65K3F

SW22N65K3F N-Channel Superjunction MOSFET

Features

  • High ruggedness

  • Low RDS(ON) (Typ 0.13Ω)@VGS=10V

  • Low Gate Charge (Typ 34nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: LED, Charger, PC Power


General Description

This power MOSFET is produced with advanced super junction technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

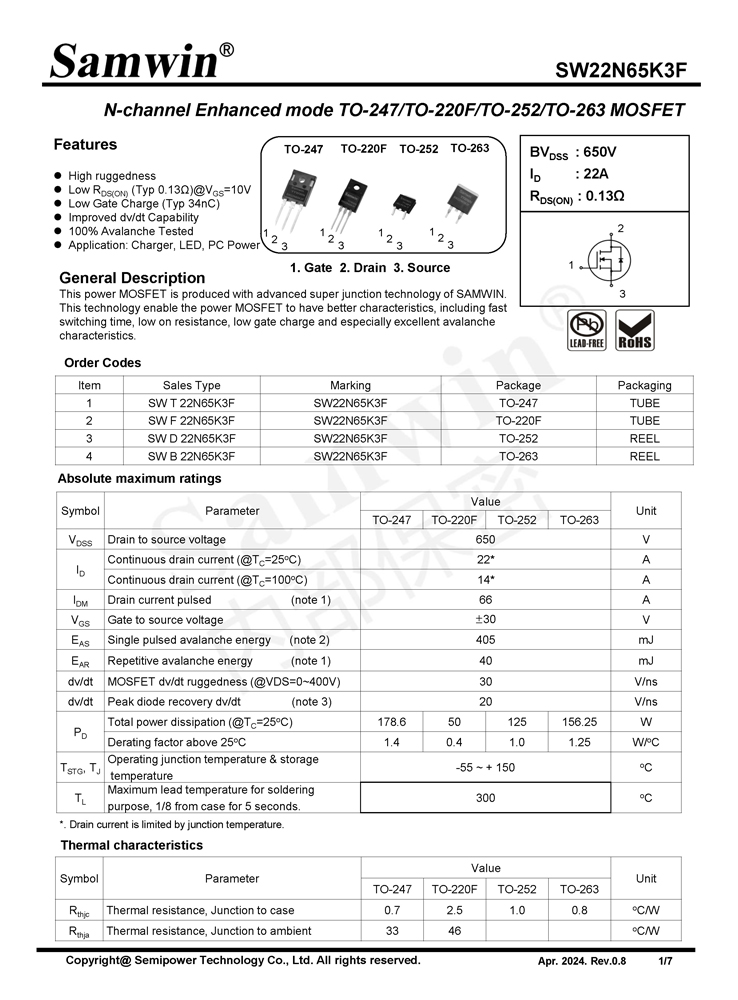

Samwin SW22N65K3F N-channel Enhanced mode TO-247/TO-220F/TO-252/TO-263 MOSFET

Samwin SW22N65K3F N-channel Enhanced mode TO-247/TO-220F/TO-252/TO-263 MOSFET

Samwin SW22N65K3F N-channel Enhanced mode TO-247/TO-220F/TO-252/TO-263 MOSFET

Samwin SW22N65K3F N-channel Enhanced mode TO-247/TO-220F/TO-252/TO-263 MOSFET

Samwin SW22N65K3F N-channel Enhanced mode TO-247/TO-220F/TO-252/TO-263 MOSFET

Samwin SW22N65K3F N-channel Enhanced mode TO-247/TO-220F/TO-252/TO-263 MOSFET
