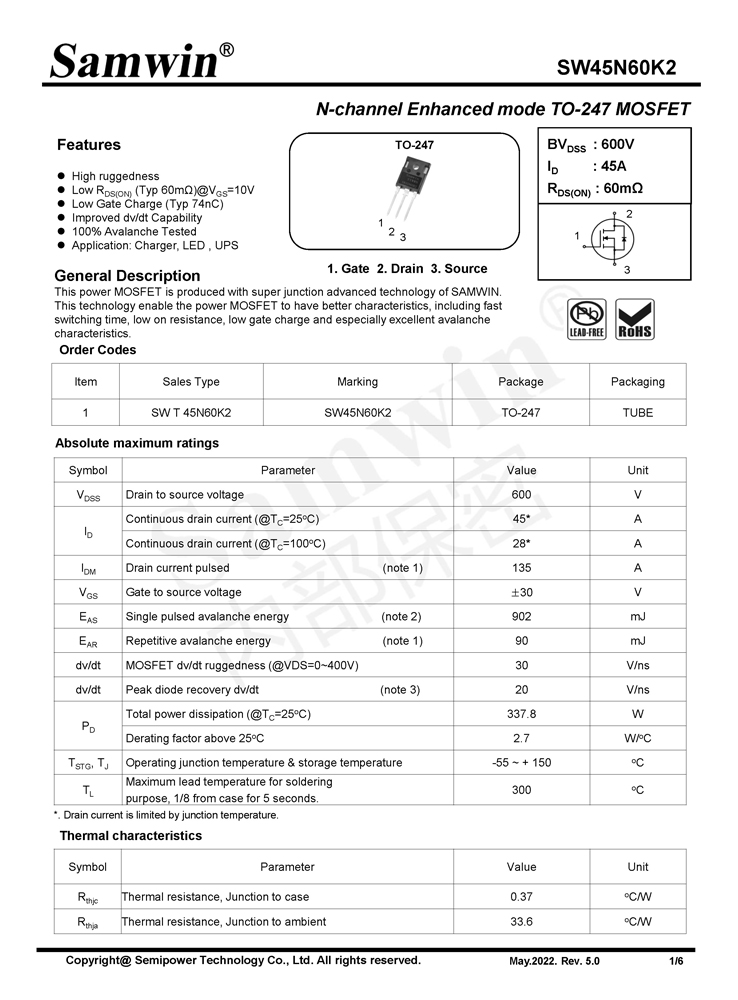

High ruggedness

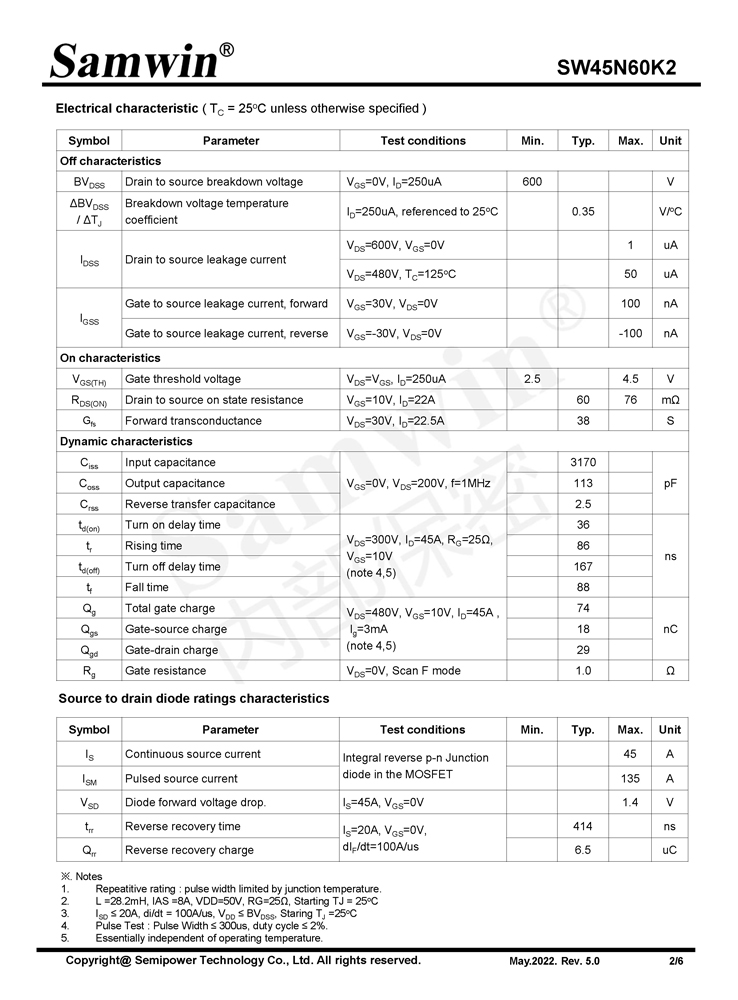

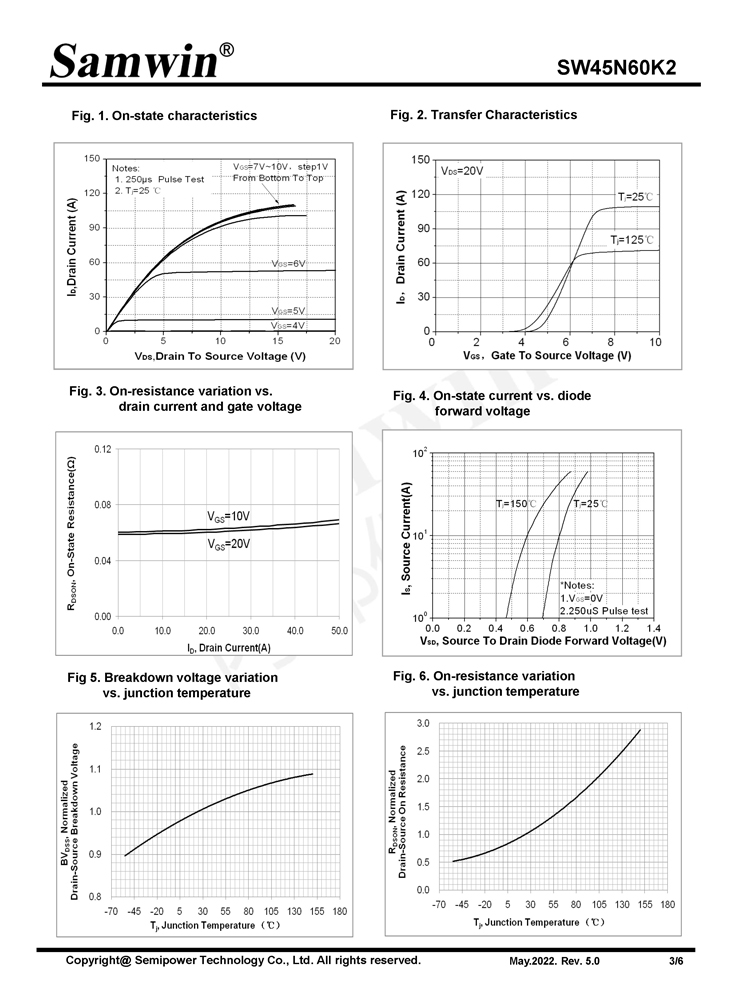

Low RDS(ON) (Typ 60mΩ)@VGS=10V

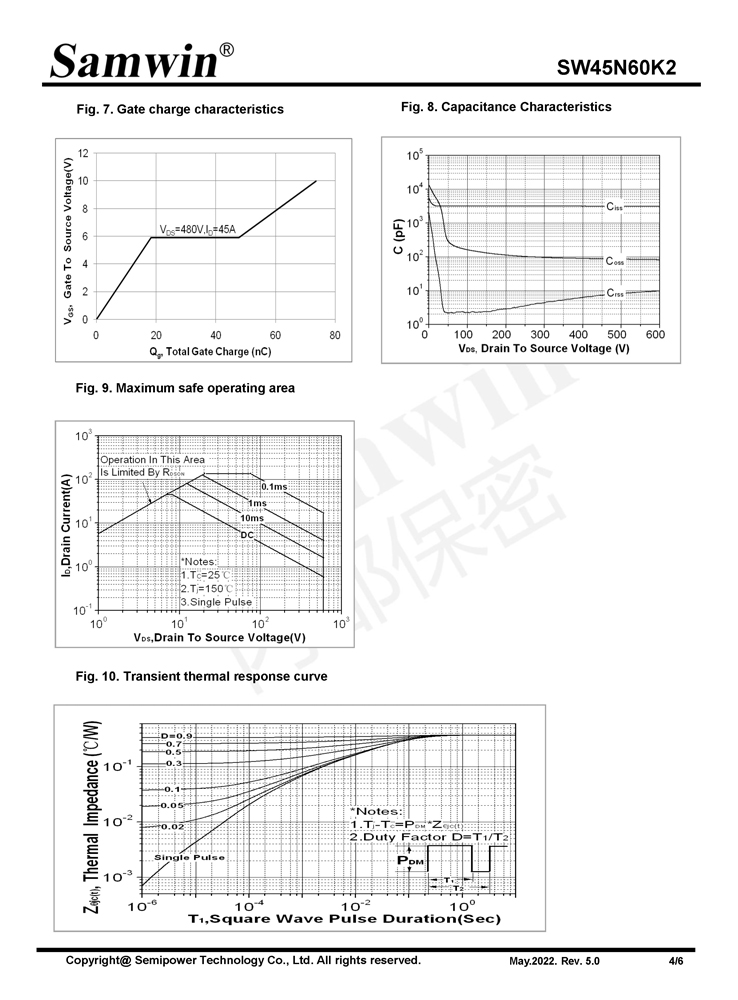

Low Gate Charge (Typ 74nC)

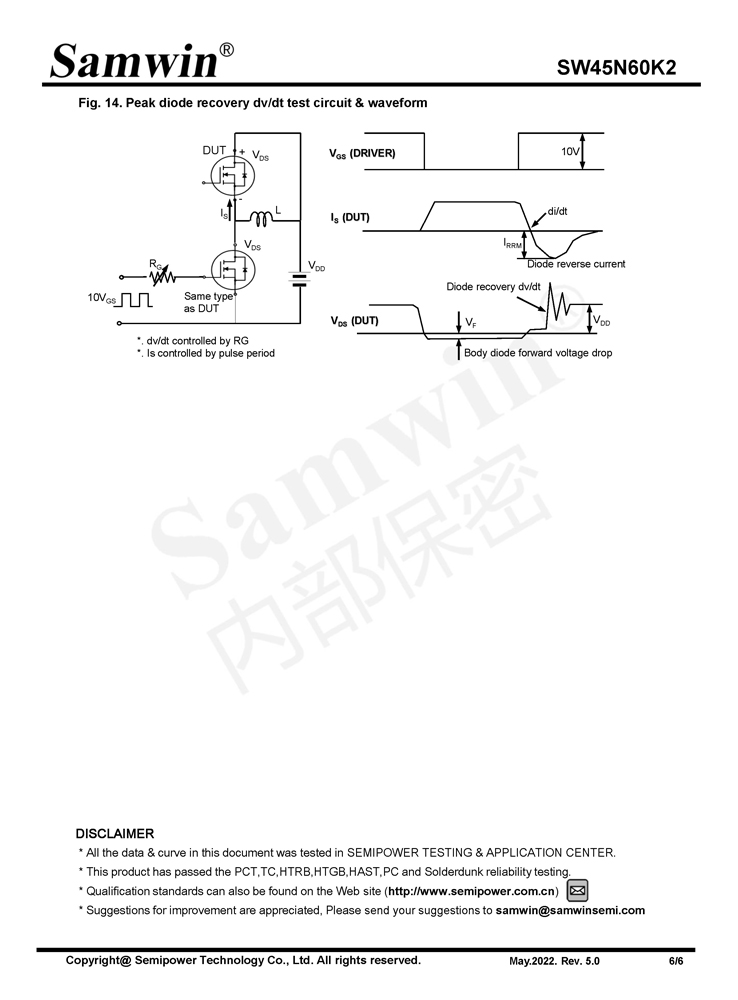

Improved dv/dt Capability
100% Avalanche Tested
Application: Charger, LED, UPS
This power MOSFET is produced with super junction advanced technology of SAMWIN.
This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.
