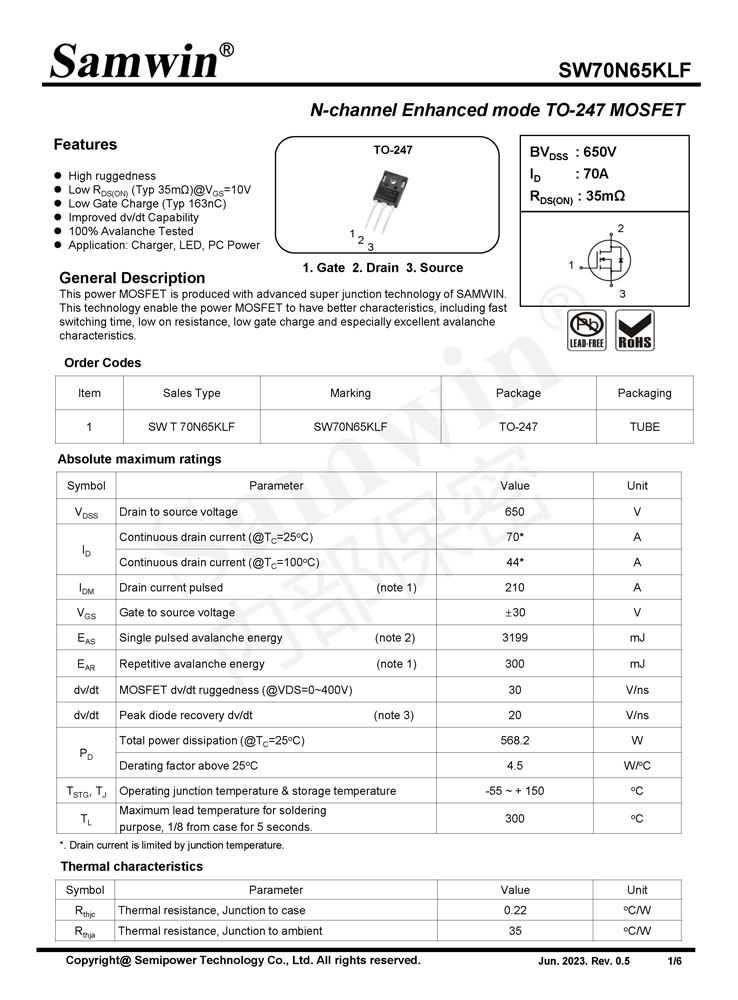

SW70N65KLF

Samwin N-Channel Superjunction MOSFET

Features

  • High ruggedness

  • Low RDS(ON) (Typ 35mΩ)@VGS=10V

  • Low Gate Charge (Typ 163nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: LED, Charger, PC Power


General Description

This power MOSFET is produced with advanced super junction technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.


Samwin SW70N65KLF N-channel Enhanced mode TO-247 MOSFET

Samwin SW70N65KLF N-channel Enhanced mode TO-247 MOSFET

Samwin SW70N65KLF N-channel Enhanced mode TO-247 MOSFET

Samwin SW70N65KLF N-channel Enhanced mode TO-247 MOSFET

Samwin SW70N65KLF N-channel Enhanced mode TO-247 MOSFET

Samwin SW70N65KLF N-channel Enhanced mode TO-247 MOSFET
